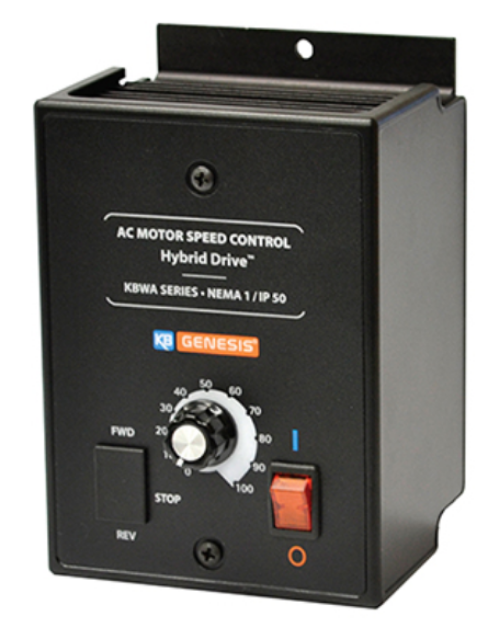

9926, (KBWA-22D) Hybrid AC Drive 1/4Hp 1.3A-1.5A 115/230V 1PH Input 230V 3PH Output NEMA 1 Enclosure

E-Motor Nations

$437.83

9926, (KBWA-22D) Hybrid AC Drive 1/4Hp 1.3A-1.5A 115/230V 1PH Input 230V 3PH Output NEMA 1 Enclosure

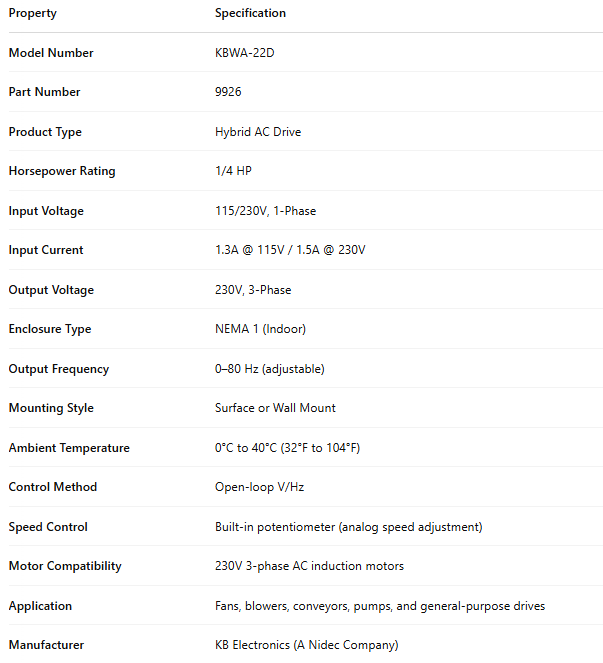

Property	Specification
Model Number	KBWA-22D
Part Number	9926
Product Type	Hybrid AC Drive
Horsepower Rating	1/4 HP
Input Voltage	115/230V, 1-Phase
Input Current	1.3A @ 115V / 1.5A @ 230V
Output Voltage	230V, 3-Phase
Enclosure Type	NEMA 1 (Indoor)
Output Frequency	0–80 Hz (adjustable)
Mounting Style	Surface or Wall Mount
Ambient Temperature	0°C to 40°C (32°F to 104°F)
Control Method	Open-loop V/Hz
Speed Control	Built-in potentiometer (analog speed adjustment)
Motor Compatibility	230V 3-phase AC induction motors
Application	Fans, blowers, conveyors, pumps, and general-purpose drives
Manufacturer	KB Electronics (A Nidec Company)

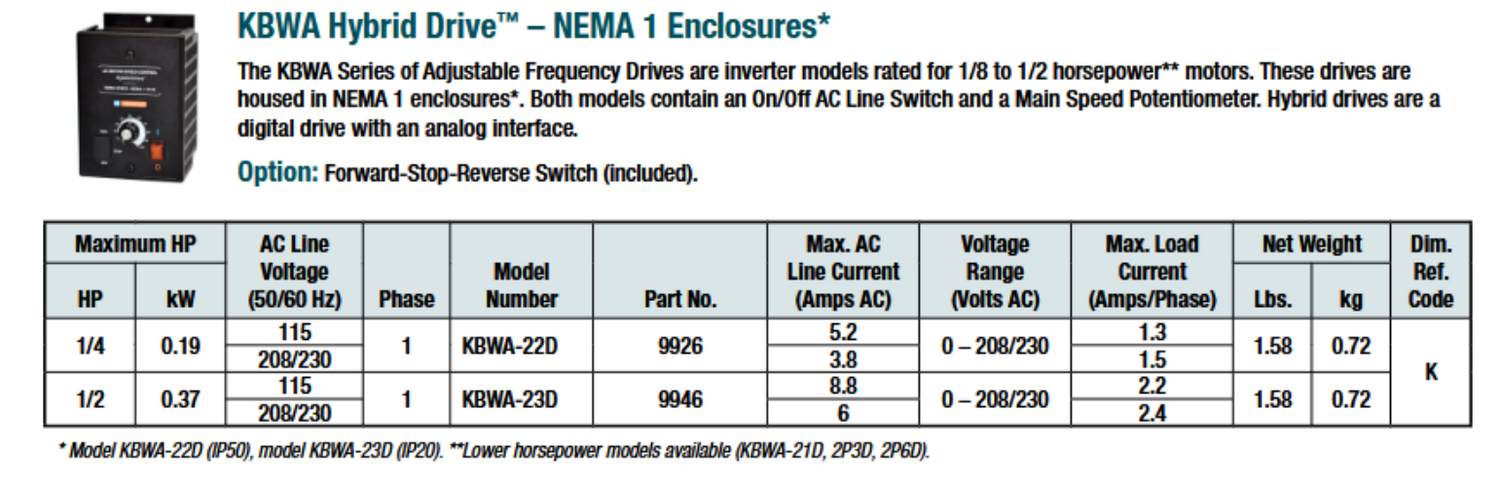

The KBWA Series of Adjustable Frequency Drives are inverter models rated for 1/8 to 1/2 horsepower** motors. These drives arehoused in NEMA 1 enclosures*. Both models contain an On/Off AC Line Switch and a Main Speed Potentiometer. Hybrid drives are adigital drive with an analog interface.

Option: Forward-Stop-Reverse Switch (included).
