IJC200L1-2-47, 40 HP, 3600 RPM, 208-230/460V, FRAME 200L, MAXMOTION

MAXMOTION

$5,659.21

METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, and IE3 EFFICIENCIES

FEATURES: IJC200L1-2-47

IP55 weather protection
Class H Insulation, with B Temp Rise
Inverter Duty Magnet Wire,

meets MG1 Part 31 10:1 CT, 20:1 VT
SKF High Temp bearings
56-112 Frames come with

Seal/lubricated Bearings,
132 and larger are re-greasable
Aluminum Construction 56-160 frame, Cast Iron 180-500 frame
Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger
PTC installed on frames 132 and larger
IEC Design N, with NEMA B Torques

Terminal Blocks, Stud

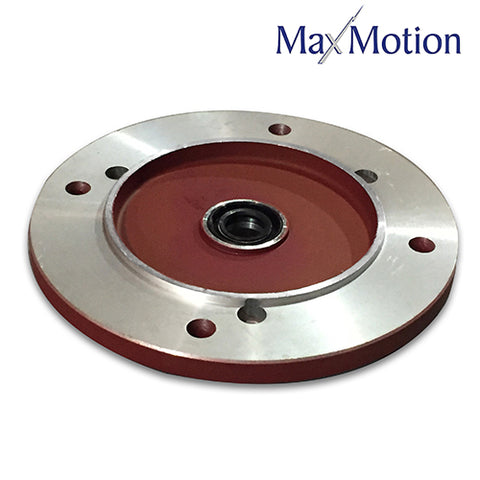

B14 and B5 Flanges are available
MAX MOTION ELECTRIC MOTOR

HP 40

CAT. # IJC200L1-2-47

RPM 3600

VOLTAGE 208-230/460

FRAME 200L

TORQUE (IN.LBS.)

WGT. LBS. 542.18

“L” DIM. 746

KW 30

EFF IE3
