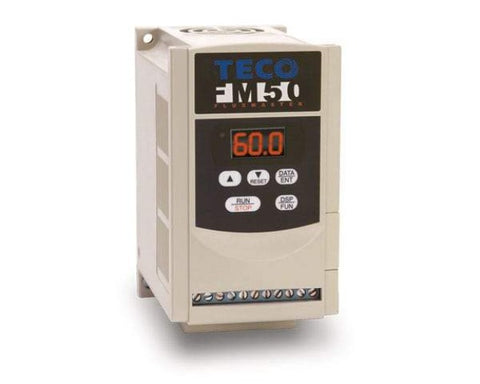

FM50-101-C, DRIVE 1 HP , 115V INPUT, 230V 3 PH, OUTPUT IP20,WESTINGHOUSE

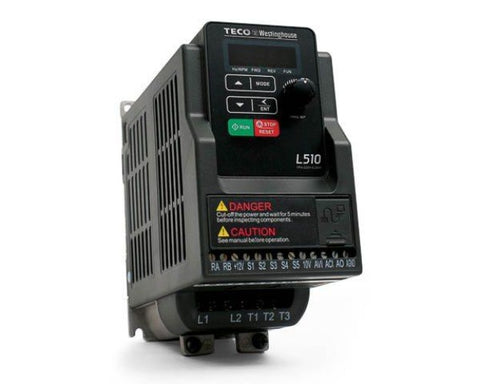

- OBSELETE REPLACE BY L510-101-H1-U
- FM50-101-C,
- TECO WESTINGHOUSE
- FM50
- AC Drive,
- 1 HP,
- 115V 1 PH Input,
- 230V 3 PH Output,
- 4.2FLA,IP20
- 100-120VAC 1 PH, 50/60Hz (Voltage +10% to -15%, Frequency ±5%) Input
- 0-230V, 3 PH Output
- 1 Analog Input (0-10V, 4-20mA, 0-20mA
- 2 Programmable Multi-function Inputs
- 2 Operation Control Inputs (FWD/REV)
- 1 Analog Output (0-10VDC)
- 1 Multi-function Output Relay
- 3 digit, 7 segment LED display
- 150% rated current for 1 minute
- 200% instantaneous overcurrent
- Electronic overload protection and stall prevention
- Ground fault and short circuit protection
- UL 508 / cUL / CE
- WARRANTY 1 YEAR
| HEIGHT |
5.2 |
|---|
| WIDTH | 2.84 |
|---|
| DEPTH | 4.65 |
|---|
