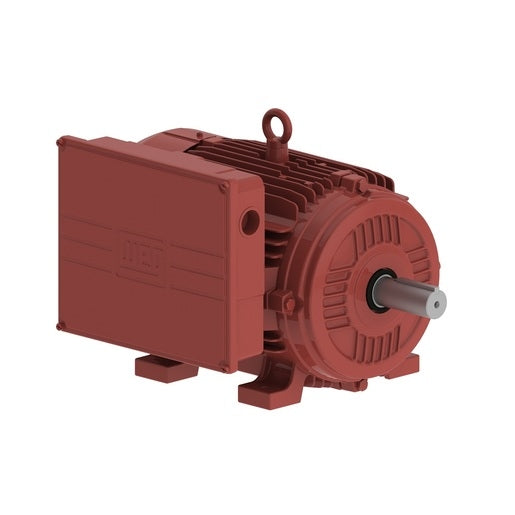

FD010104W22,Weg, 10Hp,1740, 230 Volts,1Ph, Fr:215T,Tefc, High Torque,

E-Motor Nations

$1,877.41

FD010104W22,Weg, High Torque, FDL3737TM,
FLANGE: Without
Output: 10 HP (7.5 kW)
FRAME: 215T
ALTITUDE: 1000 m.a.s.l.
AMBIENT TEMPERATURE: -20°C to +40°C
STARTING METHOD: Direct On Line
DUTY CYCLE: Cont.(S1)
TEMPERATURE RISE: 80 K
SERVICE FACTOR: 1.15
INSULATION CLASS: F
MOMENT OF INERTIA (J): 1.15 sq.ft.lb
LOCKED ROTOR TIME: 10s (cold) 6s (hot)
BREAKDOWN TORQUE: 240 %
RATED TORQUE: 30.2 ft.lb
NO LOAD CURRENT: 12.8 A
LRC: 6.7x(Code G)
L. R. AMPERES: 271 A
RATED CURRENT: 40.5 A
SLIP: 3.33 %
RATED SPEED: 1740 rpm
MOUNTING: F-1
DEGREE OF PROTECTION: IP55
FREQUENCY: 60 Hz
SYNCHRONOUS SPEED: 1800 rpm
STANDARD: NEMA MG-1
FRAME MATERIAL: Cast Iron
IMPREGNATION METHOD: Dip and Bake Polyester
MAIN TERMINAL BOX HOLE: NPT 1"
TERMINAL BLOCK: Without
DRAIN: Rubber, automatic
SHAFT MATERIAL: SAE 1040/45 Carbon Steel
PAINTING: RAL 3002 207A (ISO 12944 - C3)
GROUNDING LUGS: Single
FAN COVER MATERIAL: Steel
TROPICALIZED PAINTING: Without
FAN MATERIAL: Plastic
BEARING CAP: No-Without Bearing Cap
BALANCING METHOD: 1/2 Key
DRIP COVER: Without
OVERLOAD PROTECTOR (PHENOLIC): Manual
NDE BEARING: 6206 ZZ
GREASE TYPE: Mobil Polyrex EM
LOCKED ROTOR TORQUE: 240 %
ROTATION: Both (CW and CCW)
BEARING TYPE: 6308 ZZ
SEALING: V'Ring
NDE BEARING SEAL: V'Ring
