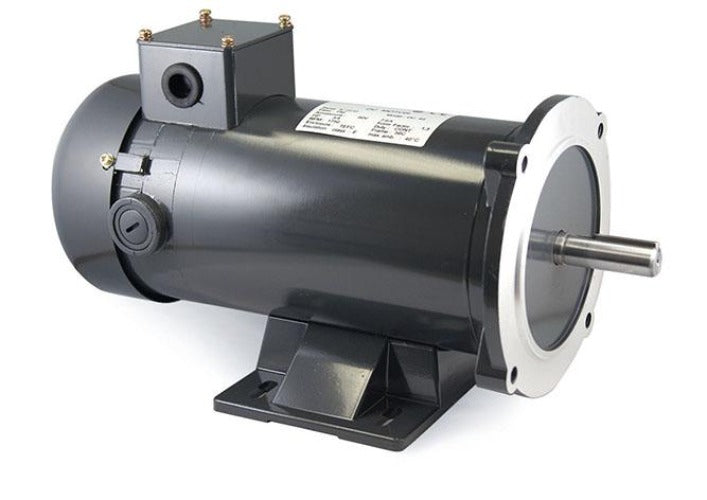

Emotornations, 1/3 Hp, 1800 Rpm, 180Vdc, Frame 56C, Tefc, DC motors

• 1/3 HP
• 1750 RPM
• 180 VDC
• 1.8 AMPS
• FRAME 56C
• TEFC
• TORQUE 13.5 LBS/INCH
• SCR rated
• TEFC & TENV
• NEMA C face with removable feet
• Permanently lubricated sealed bearings
• High quality magnets for high starting torque and increased efficiency
• Linear speed/torque throughout speed range
• SPARE PART ON REQUEST

STANDARD FEATURES

• SCR Rated
• 20:1 Constant Torque speed range
• 1.15 Service Factor
• 12 Month warranty
• Cold rolled steel construction with NEMA c-flanges and removable bases
• Double shielded permanently lubricated ball bearings
• 1045 Steel shaft
• Surface finish:
  • Alkyd enamel RAL7024 - Graphite Gray
• Corrosion resistant hardware
• Replacement parts available
• OPERATING PARAMETERS
  • Continuous (S1) duty
  • Ambient temperatures up to 40ºC
  • Installation up to 1000 MASL (3300 ft.)

  INGRESS PROTECTION

  The standard degree of enclosure protection is IP44 (Weather Proof). Conduit box lid and body are sealed with fitted foam gaskets.


  INSULATION RATING
  • 20:1 Constant Torque speed range
  • Class F Insulation
  • Designed to Class B temperature rise
