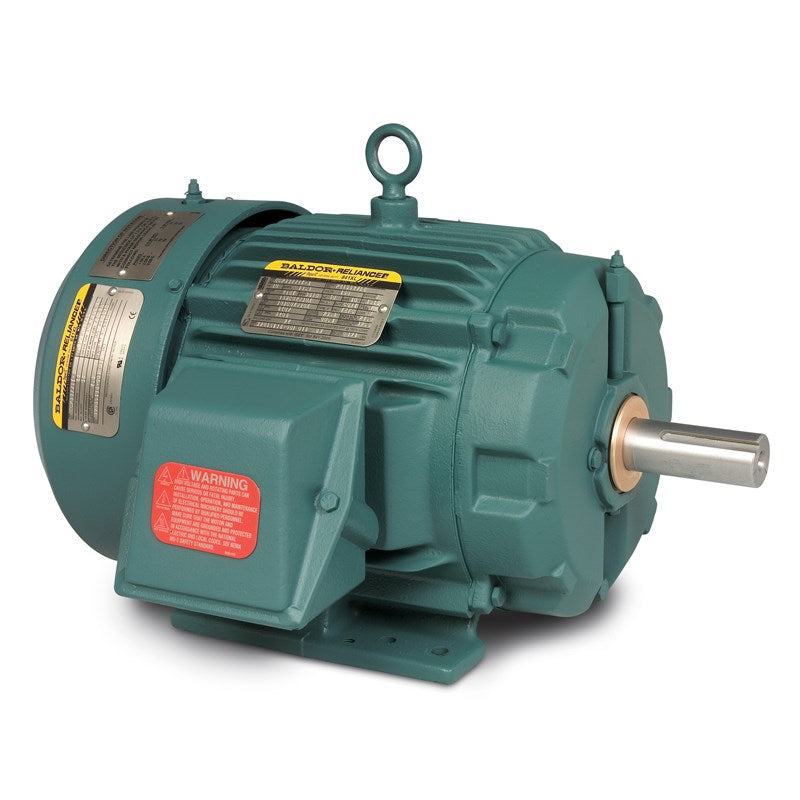

ECP84106T-4,20 Hp,3510 Rpm,460V,Fr:256T,Spec 09G557T034,Severe Duty,

BALDOR

$3,880.34

ECP84106T-4,Spec 09G557T034, Severe Duty, Replace EM4106T, Spec 09P011Z601, ECP4106T, Spec 09J371Y799G1,

STK.NO.	ECP84106T-5						P/N																		ENCLOSURE					TEFC
SPEC.	09G557T034					CC		010A				FRAME					256T							S/N
HP	20						CLASS						F		HZ			60			ODE BRG						6309		DE BRG		6309
RPM	3510		RPM MAX	5400			PH			3				DES			B			D.E. BRG.							45BC03X30X
VOLT	460						KVA-CODE								G				O.D.E. BRG.									45BC03X30X
AMP	22						MOTOR WEIGHT												324			GREASE					POLYREX EM
RATING	40C AMB-CONT								MAX. KVAR									2.1					BLANK
NEMA-NOM-EFF	91		# OF ROTOR BARS						28			SER.F.						1.15				IP		56
G.MIN.EFF	90.2		# OF STATOR SLOTS								36			PF		91				INV.TYPE						PWM
TEMP CODE	T3		INVERTER-TEMP-CODE									200
TEMP =	200		C HP FR	60	C HP TO							90
CT HZ FROM	6	CT HZ TO		60
HTR-VOLTS			HTR-AMPS				HTR-WATTS													MAX. SPACE HEATER TEMP.												VT HZ FROM	0-	VT HZ TO	6
