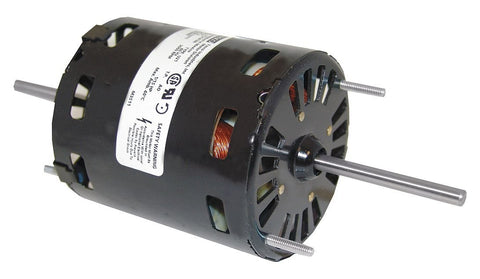

D211, Fasco, 1/15Hp, 3000 Rpm, 230 Volts, OAO, DBL SHAFT, 7121-6184
E-Motor Nations
D211,Fasco,7121-6184,

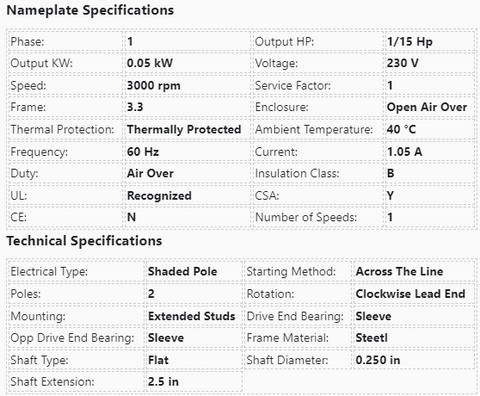

Nameplate Specifications
Phase: |
1 |
Output HP: |
1/15 Hp |
Output KW: |
0.05 kW |
Voltage: |
230 V |
Speed: |
3000 rpm |
Service Factor: |
1 |
Frame: |
3.3 |
Enclosure: |
Open Air Over |
Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
Frequency: |
60 Hz |
Current: |
1.05 A |
Duty: |
Air Over |
Insulation Class: |
B |
UL: |
Recognized |
CSA: |
Y |
CE: |
N |
Number of Speeds: |
1 |
Technical Specifications
Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
Poles: |
2 |
Rotation: |
Clockwise Lead End |
Mounting: |
Extended Studs |
Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Steetl |
Shaft Type: |
Flat |
Shaft Diameter: |
0.250 in |
Shaft Extension: |
2.5 in |

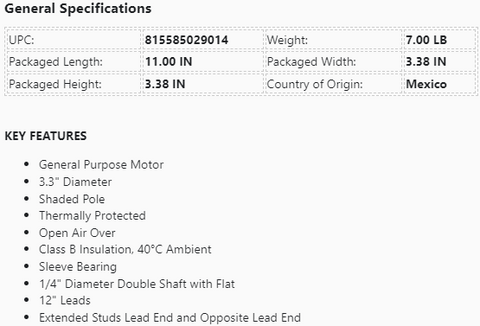

General Specifications
UPC: |
815585029014 |
Weight: |
7.00 LB |
Packaged Length: |
11.00 IN |
Packaged Width: |
3.38 IN |
Packaged Height: |
3.38 IN |
Country of Origin: |
Mexico |
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Lead End and Opposite Lead End
