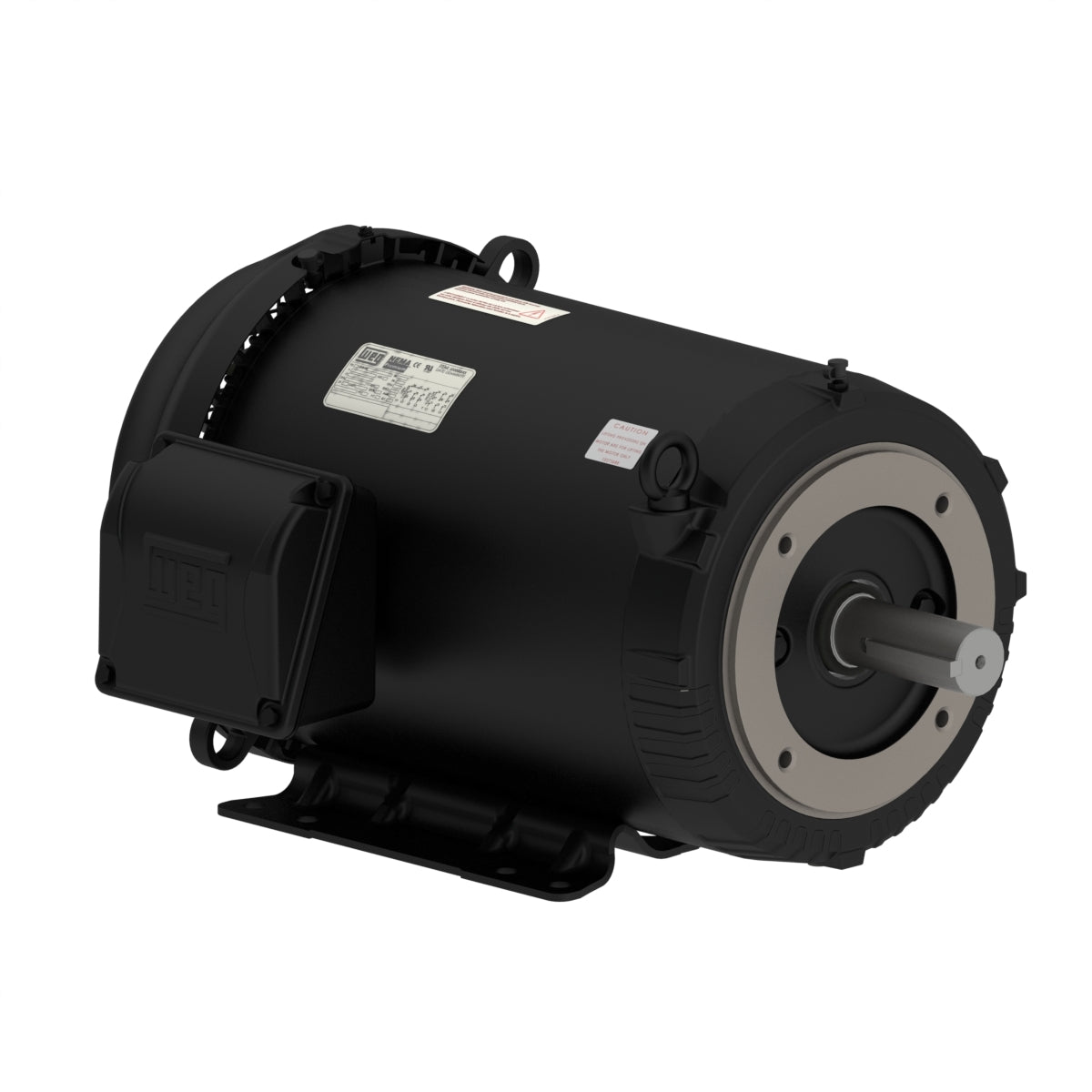

CT007504NPW01, Weg, MPP-27, MPC-27W, MaxMotion
Electric Motors
Frame |
213/5TC |
Output |
7.5 HP (5.5 kW) |
Number of Poles |
4 |
Frequency |
60 Hz |
Rated speed |
1770 rpm |
Slip |
1.67 % |
Rated voltage |
575 V |
Rated current |
7.34 A |
L. R. Amperes |
53.6 A |
LRC |
7.3x(Code J) |
No load current |
3.52 A |
Rated torque |
22.3 ft.lb |
Locked rotor torque |
260 % |
Breakdown torque |
300 % |
Locked rotor time |
32s (cold) 18s (hot) |
Moment of inertia (J) |
0.9380 sq.ft.lb |
Design |
B |
Insulation Class |
F |
Service factor |
1.15 |
Temperature rise |
80 K |
Duty Cycle |
Cont.(S1) |
Starting Method |
Direct On Line |
Ambient temperature |
-20°C to +40°C |
Altitude |
1000 m.a.s.l. |
Degree of Protection |
IP55 |
Enclosure |
IC411 - TEFC |
Mounting |
F-1 |
Rotation¹ |
Both (CW and CCW) |
Noise level² |
60.0 dB(A) |
Approx. weight³ |
127 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
50% |
75% |
100% |
90.2 |
91.0 |
91.7 |
Power factor
50% |
75% |
100% |
0.64 |
0.76 |
0.82 |
Features
Frame Material |
Rolled Steel |
Impregnation Method |
Dip and Bake Polyester |
Main terminal box hole |
1.377" |
Terminal Block |
Without |
Drain |
Rubber, automatic |
Shaft Material |
SAE 1040/45 Carbon Steel |
Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
Grounding Lugs |
Single |
Fan Cover material |
Steel |
Tropicalized Painting |
Without |
Bearing cap |
Yes- Bearing Cap |
Bolt Material |
Carbon Steel |
Balancing Method |
1/2 Key |
Drip Cover |
Without |
Resilient Base |
Without |
Overload protector (phenolic) |
Without overload protector |
Connection Cables Quantity |
6 |
Fan material |
Plastic |
