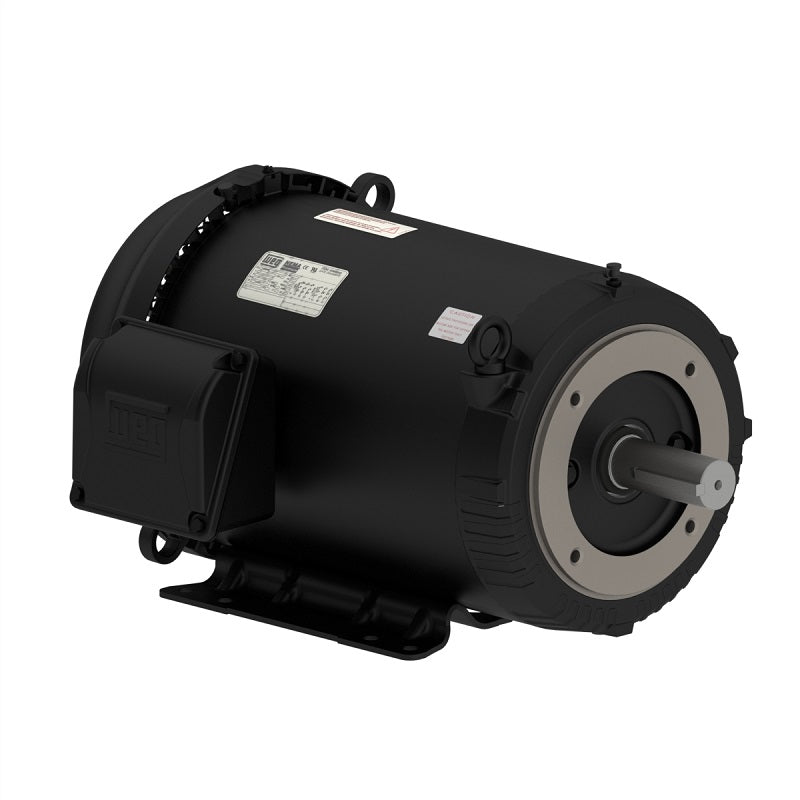

CT005502NPW01, WEG, 5 Hp, 3450 Rpm, 575V, Fr:182/4TC, TEFC, W01, Weg,
Electric Motors
Frame |
182/4TC |
Output |
5 HP (3.7 kW) |
Number of Poles |
2 |
Frequency |
60 Hz |
Rated speed |
3500 rpm |
Slip |
2.78 % |
Rated voltage |
575 V |
Rated current |
4.72 A |
L. R. Amperes |
36.8 A |
LRC |
7.8x(Code J) |
No load current |
1.76 A |
Rated torque |
7.50 ft.lb |
Locked rotor torque |
220 % |
Breakdown torque |
300 % |
Locked rotor time |
30s (cold) 17s (hot) |
Moment of inertia (J) |
0.2079 sq.ft.lb |
Design |
B |
Insulation Class |
F |
Service factor |
1.15 |
Temperature rise |
80 K |
Duty Cycle |
Cont.(S1) |
Starting Method |
Direct On Line |
Ambient temperature |
-20°C to +40°C |
Altitude |
1000 m.a.s.l. |
Degree of Protection |
IP55 |
Enclosure |
IC411 - TEFC |
Mounting |
F-1 |
Rotation¹ |
Both (CW and CCW) |
Noise level² |
68.0 dB(A) |
Approx. weight³ |
90.8 lb |
