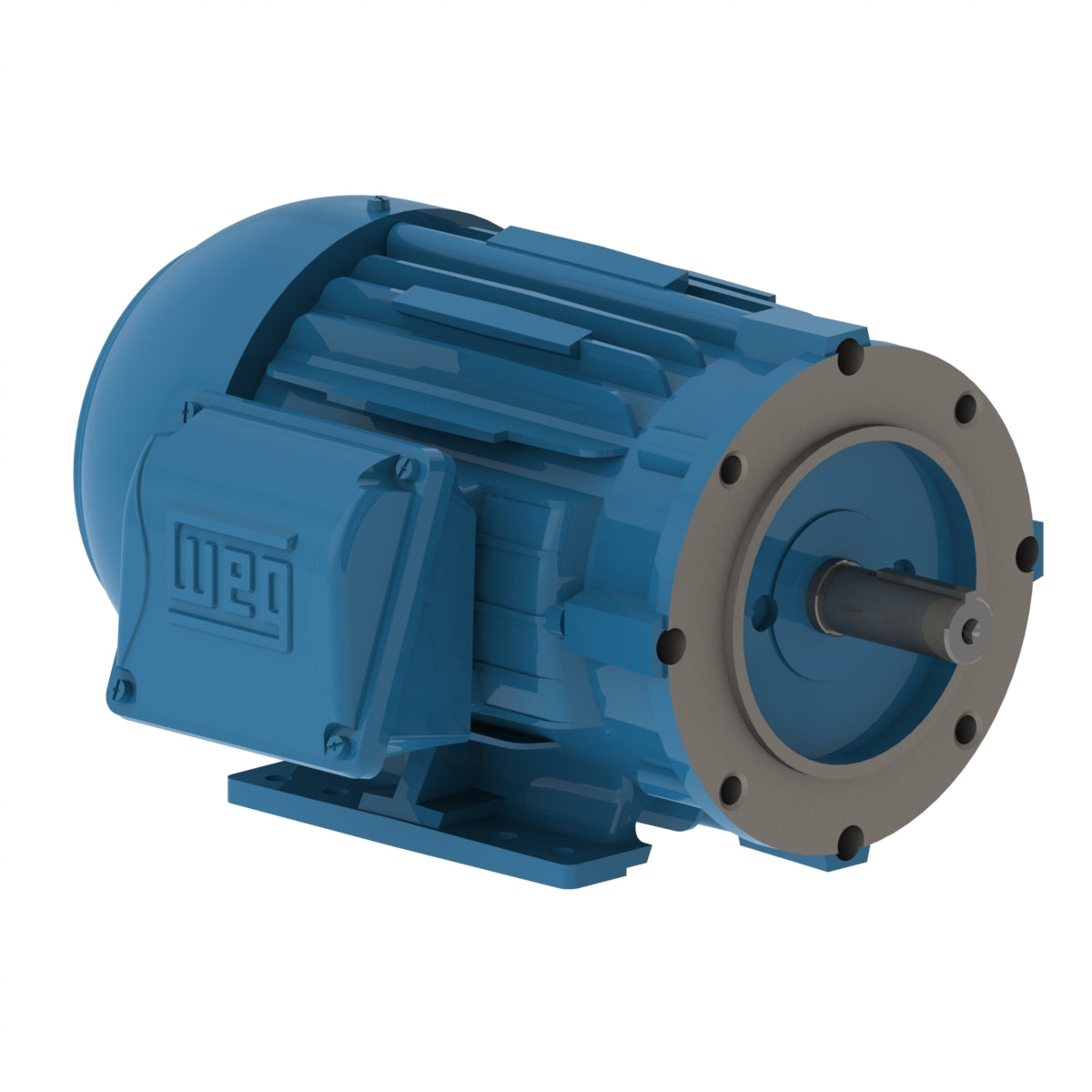

CT001504NPW01,Weg, Replace CEM3554T-5, EM3554T-5, PDH1/545C, MPP-7, MaxMotion. U32P2GC,
Electric Motors
| Frame |
143/5TC |
| Output |
1.5 HP (1.1 kW) |
| Number of Poles |
4 |
| Frequency |
60 Hz |
| Rated speed |
1755 rpm |
| Slip |
2.50 % |
| Rated voltage |
575 V |
| Rated current |
1.62 A |
| L. R. Amperes |
13.6 A |
| LRC |
8.4x(Code L) |
| No load current |
0.880 A |
| Rated torque |
4.49 ft.lb |
| Locked rotor torque |
290 % |
| Breakdown torque |
350 % |
| Locked rotor time |
25s (cold) 14s (hot) |
| Moment of inertia (J) |
0.1431 sq.ft.lb |
| Design |
B |
| Insulation Class |
F |
| Service factor |
1.25 |
| Temperature rise |
80 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC411 - TEFC |
| Mounting |
F-1 |
| Rotation¹ |
Both (CW and CCW) |
| Noise level² |
51.0 dB(A) |
| Approx. weight³ |
52.0 lb |
