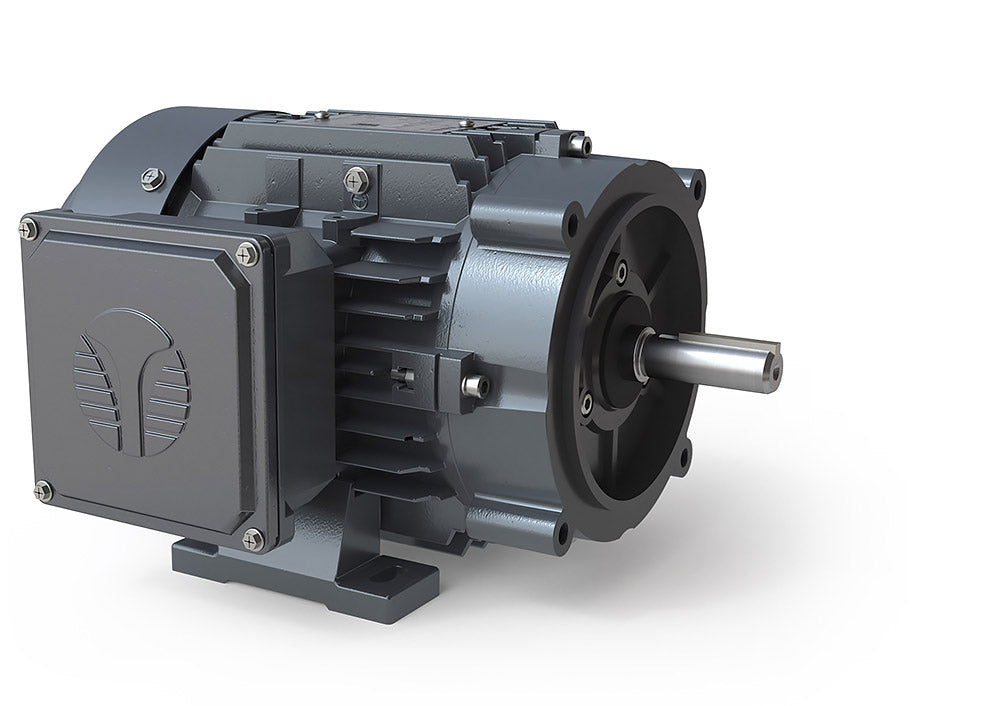

BLA.752F-C, Techtop, 3/4 Hp, 3500 Rpm, 575V, Fr: 56C, MPR-342CW,TEFC
BLA.752F-C,, Techtop, Replace MPR-342CW MaxMotion, , Baldor VM3541-5, 34A63-492
- 0.75 HP
- 3500 r/min 60Hz Rated Motor Speed
- 2870 r/min 50Hz
- 575 V/60Hz
- Rated Motor Current 1.2A
- Phase 3
- Locked Rotor Current @ High Voltage 8.67A
- A (In) @ 60Hz
- Service Factor 1.25 @ 60Hz
- 1 @ 50Hz
- KVA Code
- Nominal Efficiency 77
- Nominal Power Factor 0.75 cosφ @ 60Hz
- VFD DUTY (S.F. 1.0)
- RATIO Variable Torque 30:1
- 2 - 60 Constant Torque 15:1
