9493, (KBWS-25D) PWM DC Drive 3/4Hp-1.5Hp 5A 115/230VAC 1PH Input 90 to 130VDC/180 to 220VDC Output W/ Isolation Chassis

E-Motor Nations

$364.12

9493, (KBWS-25D) PWM DC Drive 3/4Hp-1.5Hp 5A 115/230VAC 1PH Input 90 to 130VDC/180 to 220VDC Output W/ Isolation Chassis

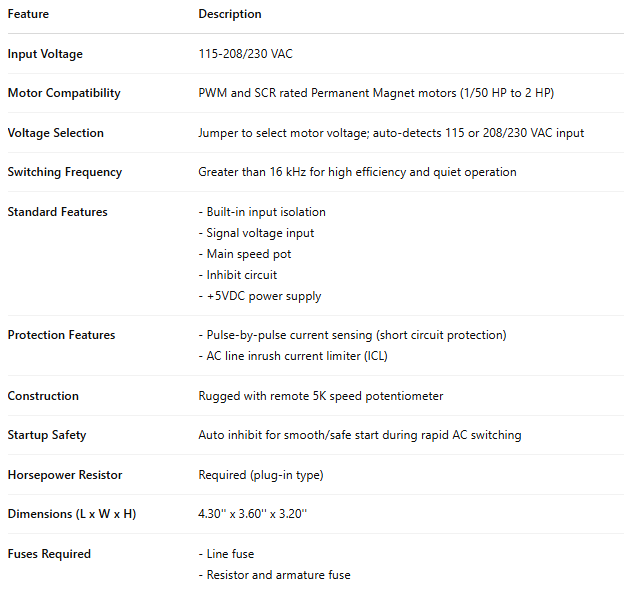

Feature	Description
Input Voltage	115-208/230 VAC
Motor Compatibility	PWM and SCR rated Permanent Magnet motors (1/50 HP to 2 HP)
Voltage Selection	Jumper to select motor voltage; auto-detects 115 or 208/230 VAC input
Switching Frequency	Greater than 16 kHz for high efficiency and quiet operation
Standard Features	- Built-in input isolation - Signal voltage input - Main speed pot - Inhibit circuit - +5VDC power supply
Protection Features	- Pulse-by-pulse current sensing (short circuit protection) - AC line inrush current limiter (ICL)
Construction	Rugged with remote 5K speed potentiometer
Startup Safety	Auto inhibit for smooth/safe start during rapid AC switching
Horsepower Resistor	Required (plug-in type)
Dimensions (L x W x H)	4.30'' x 3.60'' x 3.20''
Fuses Required	- Line fuse - Resistor and armature fuse

The KBWS PWM Series of DC Drives contain a fully isolated input and are designed to operate PWM and SCR rated Permanent
Magnet motors. They provide high motor efficiency with quiet motor operation. The KBWS uses pulse-by-pulse current sensing
to protect the SCR power bridge against shorts due to commutator arcing and prevents motor demagnetization. The controls
contain an AC line inrush current limiter (ICL) which reduces AC line surge currents during startup. The drives contain built-in
isolation for all inputs. This includes: Signal Voltage, Main Speed Potentiometer, Inhibit Circuit and +5VDC Power Supply. This
drive requires a Plug-In Horsepower Resistor®* to operate and contains Auto Inhibit® which provides a smooth, safe start
during rapid switching of the AC line. A 5k ohm potentiometer is included.
