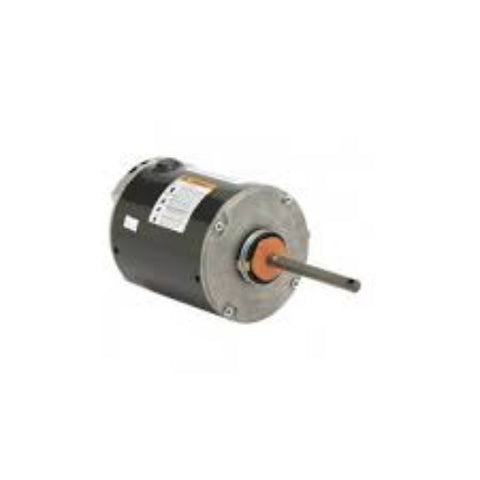

8233, Us Motors, 3/4 Hp, 1100 Rpm, 460V, K055NPB1104031B,Condenser Fan,1PH,

US MOTORS

$503.24

8233, U.S Motors, EM-8233, K055NPB1104031B, Condenser fan , Ao Smith, F48U09A27, Century, SA70274,

Model Number:	K055NPB1104031B
PRODUCT NAME:	.75 HP - OPEN - 1100 RPM
PHASE TYPE:	1_PERM SPLIT CAP
MOTOR ENCLOSURE:	OPEN
HORSEPOWER:	.75
KILOWATTS:	0.6
POLES:	6
NUMBER SPEEDS:	1
RPM:	1100
HERTZ:	60
VOLTS PRIMARY:	460
VOLTS :	460
FRME :	48
SHAFT CODE:	Y
STACK:	4
MOTOR TYPE:	FHP
OPPOSITE END BEARING:	BALL
SHAFT END BEARING:	BALL
AMBIENT:	60
ROTATION:	CCW LEAD END
SERVICE FACTOR:	1
RUN CAP MFD:	15
RUN CAP VOLTS:	370
SHIPPING WEIGHT:	26
THERMAL PROTECTION:	AUTOMATIC RESET
BREAKDOWN TORQUE:	92.76
BREAKDOWN TORQUE UOM:	OZFT
LOCKED ROTOR TORQUE:	21.84
LOCKED ROTOR TORQUE UOM:	OZFT
INSULATION CLASS:	B
LOCKED ROTOR AMPS:	4.61
FULL LOAD AMPS PRIMARY:	2.3
