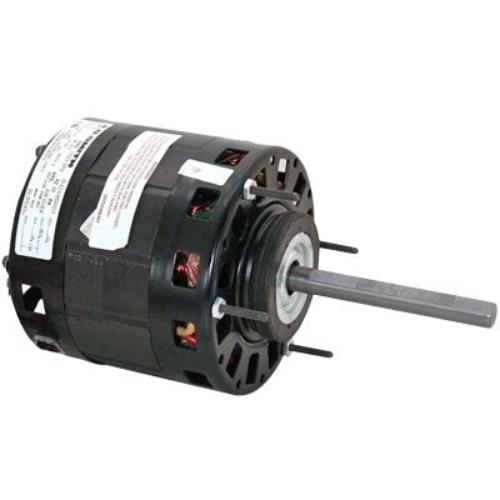

429, Magnetek, 1/5 Hp, 1050 Rpm, 208/230 Volts, Frame: 42, ODP,

E-Motor Nations

$241.20

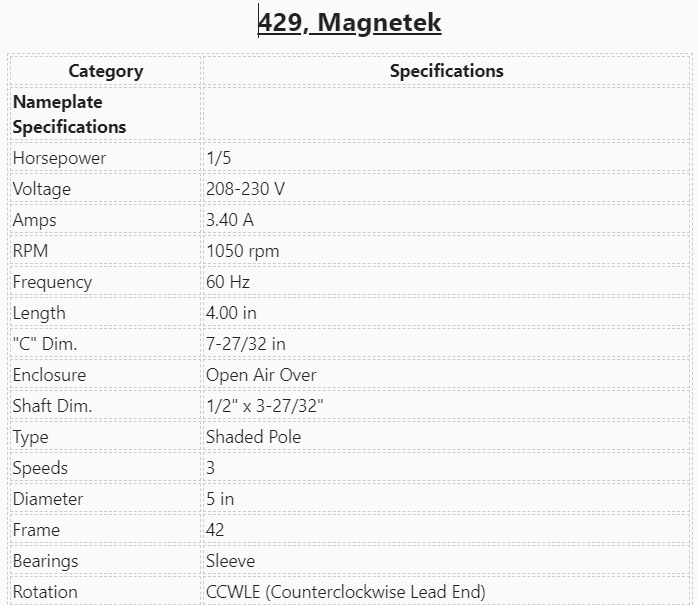

429, Magnetek

Category	Specifications
Nameplate Specifications
Horsepower	1/5
Voltage	208-230 V
Amps	3.40 A
RPM	1050 rpm
Frequency	60 Hz
Length	4.00 in
"C" Dim.	7-27/32 in
Enclosure	Open Air Over
Shaft Dim.	1/2" x 3-27/32"
Type	Shaded Pole
Speeds	3
Diameter	5 in
Frame	42
Bearings	Sleeve
Rotation	CCWLE (Counterclockwise Lead End)

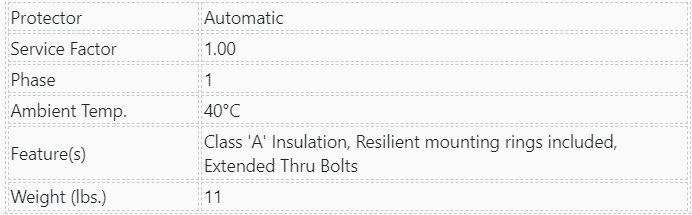

Protector	Automatic
Service Factor	1.00
Phase	1
Ambient Temp.	40°C
Feature(s)	Class 'A' Insulation, Resilient mounting rings included, Extended Thru Bolts
Weight (lbs.)	11
