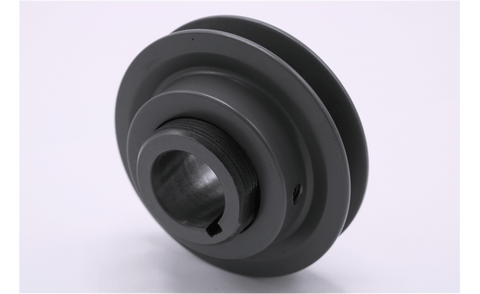

1VP34-7/8,Masterdrive,Dia 3.15'',Bore 7/8'',Variable Pitch Adjustable,
1VP34-7/8, Masterdrive, Diameter 3.15'',Bore Size 7/8'',Maska 8325,

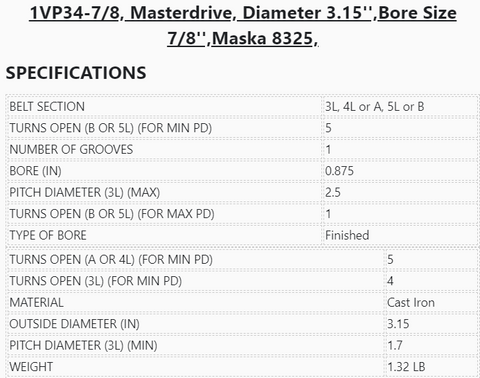

SPECIFICATIONS
| BELT SECTION | 3L, 4L or A, 5L or B |
| TURNS OPEN (B OR 5L) (FOR MIN PD) | 5 |
| NUMBER OF GROOVES | 1 |
| BORE (IN) | 0.875 |
| PITCH DIAMETER (3L) (MAX) | 2.5 |
| TURNS OPEN (B OR 5L) (FOR MAX PD) | 1 |
| TYPE OF BORE | Finished |
| TURNS OPEN (A OR 4L) (FOR MIN PD) | 5 |
| TURNS OPEN (3L) (FOR MIN PD) | 4 |
| MATERIAL | Cast Iron |
| OUTSIDE DIAMETER (IN) | 3.15 |
| PITCH DIAMETER (3L) (MIN) | 1.7 |
| WEIGHT | 1.32 LB |
PRODUCT DETAILS
- 0.875 Bore (in)
DESCRIPTION
- All fitted with hollow head setscrews. Any standard one groove O, A, B or 5V Browning sheave can be used as a companion sheave.
APPLICATIONS
- Conveyors
- Pumps
- Fans
- Mixers
- Ventilators
FEATURES
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
