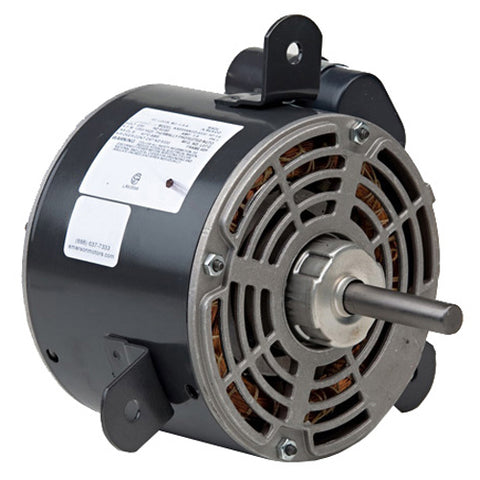

1265, Us Motors, 1/6 Hp, 1550 RPM, C063FJS5563015B, 460V, FR:48, ODP

1265, Us Motors, C063FJS5563015B, REPLACE 79J8101, K55HXCSD-6620, K55HXDVA-1265

• Horsepower :1/6
• Voltage :460
• Amps :0.55
• RPM :1550
• Frequency :60/50 Hz
• Length :4-1/16"
• "C" Dim. :7-1/8"
• Enclosure :Open
• Shaft Dim. :1/2" x 3-1/16"
• Type :Permanent Split Capacitor
• Speeds :1
• Diameter :5-5/8"
• Frame :48Y
• Bearings :Self-Aligining Bearing
• Rotation :CWLE
• Protector :Automatic
• Phase :1
• Ambient Temp. :50°C
• Feature(s) :Class 'B' Insulation, Thru-Bolts
• Weight (lbs.) :9

Furnace. K055CMH1589013B. Suggested after market replacement for Copeland condenser fan motor 050-0265-01, 20043
