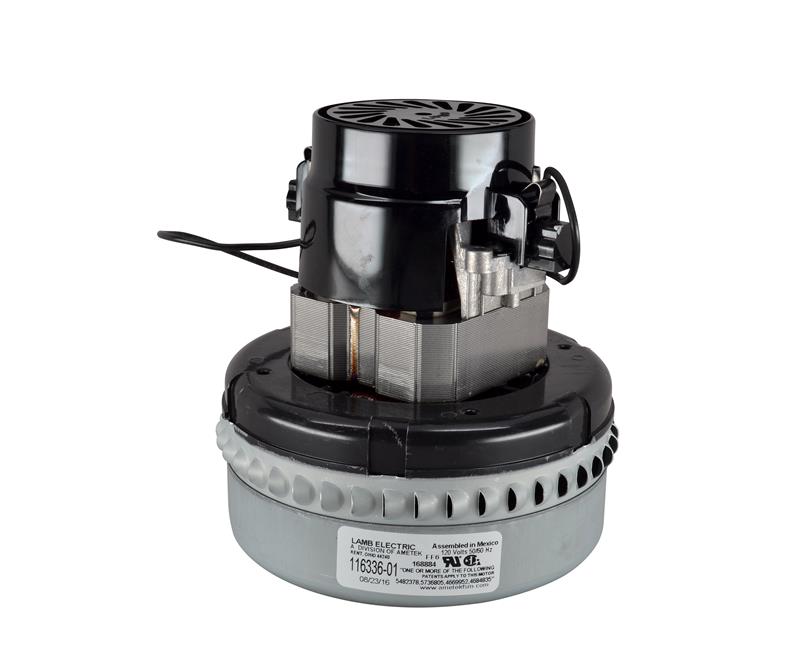

116336-01, Ametek Lamb, 120V, 2-stage, 5.7 inch Dia, 70250953, 274W, 8.0A,
116336-01, Ametek Lamb,
Technical Specs
- Item Vacuum Motor
- Motor/Blower Type Bypass
- Discharge Peripheral Bypass
- Blower Stages 2
- No. of Speeds 1
- Motor Enclosure Design Open
- CFM @ 2-In. Orifice 94.0
- Vacuum (H2O Sealed) 84.3
- Voltage 120
- Hz 60/50
- Phase 1
- Max. Amps 8.0
- Max. Air Watts 274
- Motor Mounting Type Lug
- Motor DesignUniversal AC/DC
- Motor Mounting PositionAll Angle
- Motor Thermal ProtectionNone
- Ins. Class A
- Bearings Ball
- Ambient Temperature 40 Degrees C
- Body Dia.5.7"
- Overall Height6-5/16"
- Mounting Brackets Thermoset
- Duty Intermittent
- Average Life500 hr.
- StandardsUL Recognized (E47185), CSA Certified (LR31393)
- Replacement Brushes2UV81
