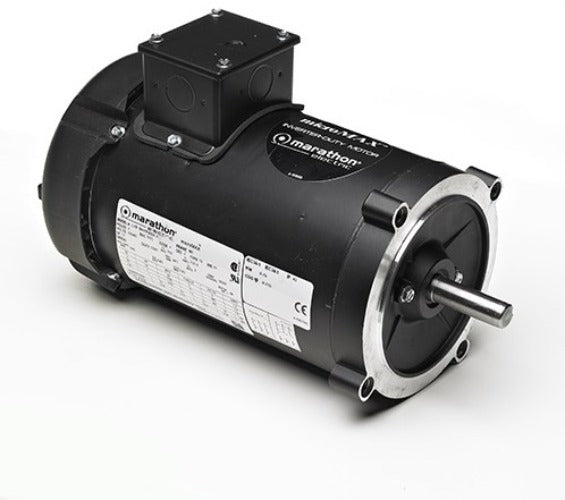

Y364, Marathon, MicroMax, 1 Hp, 1725 Rpm, 230/460V, 56C, 056H17F2021

MARATHON

$768.30

Y364, Marathon, Part # 056H17F2021, Micro Max, Replace Y508 Marathon, 056H17F2013

Nameplate Specifications

Output HP:	1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	3.2/1.6 A	Speed:	1725 rpm
Service Factor:	1	Phase:	3
Efficiency:	78.5 %	Power Factor:	77.5
Duty:	Continuous	Insulation Class:	H
Design Code:	INV	KVA Code:	K
Frame:	56C	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Duty	Starting Method:	Inverter Only
Poles:	4	Rotation:	Reversible
Resistance Main:	16.6 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	12.44 in
Frame Length:	7.50 in	Shaft Diameter:	0.625 in
Shaft Extension:	2.06 in	Assembly/Box Mounting:	F3

• INVERTER (VECTOR) DUTY: MICROMAX® MOTORS

• 1000:1 CONSTANT TORQUE (TENV),

• 20:1 CONSTANT TORQUE (TEFC)

• TOTALLY ENCLOSED, THREE PHASE MOTORS

• APPLICATIONS: Designed for direct replacement of PMDC or any other variable speed application where up to a 1000:1 constant torque speed range is required. Typical uses include: machine tools, conveyors, packaging machines, batching machines, and printing equipment.

• FEATURES:

• Designed to replace PMDC motors (when used with a VFD)

• Constant horsepower to twice base speed (RPM)

• Class H insulation with CR200 corona resistant magnet wire

• Removable base for C-Face footless mounting, as noted

• Continuous duty at 40ºC ambient

• “Quick Connect” terminal board, as noted • Top-mounted conduit box as found on PMDC motors

• Eliminates brush and commutator maintenance

• UL recognized, CSA certified, and CE mark

• Three-year warranty

• Model 056H17F2021
