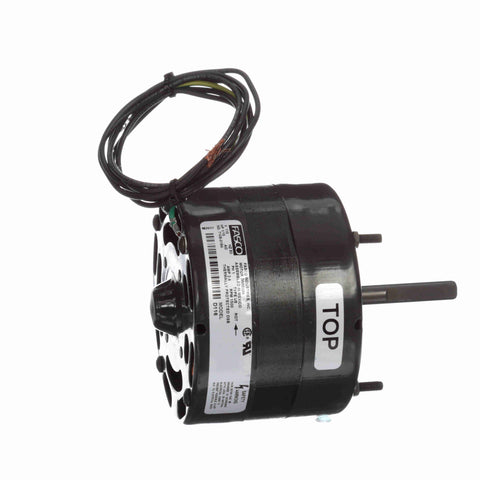

D116, Fasco, 1/15 Hp, 1500 Rpm, 115 Volts, Frame: 4.4, Open air over,

D116, Fasco, 1/15Hp, 1500 Rpm, 115 Volts, Frame: 4.4, Open air over,

E-Motor Nations

D116, Fasco,

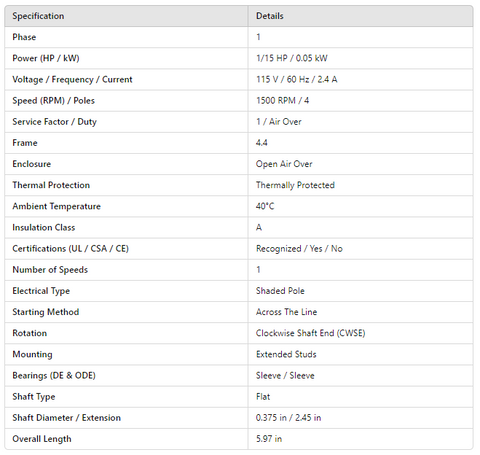

Specification Details
Phase 1
Power (HP / kW) 1/15Hp / 0.05 kW
Voltage / Frequency / Current 115 V / 60 Hz / 2.4 A
Speed (RPM) / Poles 1500 RPM / 4
Service Factor / Duty 1 / Air Over
Frame 4.4
Enclosure Open Air Over
Thermal Protection Thermally Protected
Ambient Temperature 40°C
Insulation Class A
Certifications (UL / CSA / CE) Recognized / Yes / No
Number of Speeds 1
Electrical Type Shaded Pole
Starting Method Across The Line
Rotation Clockwise Shaft End (CWSE)
Mounting Extended Studs
Bearings (DE & ODE) Sleeve / Sleeve
Shaft Type Flat
Shaft Diameter / Extension 0.375 in / 2.45 in
Overall Length 5.97 in
