CP020404NPW01, Rolled Steel NEMA Premium Efficiency 20Hp 1770 Rpm 4P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

E-Motor Nations

$2,042.57

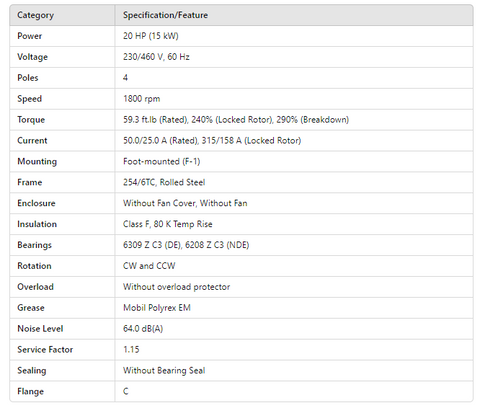

Category	Specification/Feature
Power	20 HP (15 kW)
Voltage	230/460 V, 60 Hz
Poles	4
Speed	1800 rpm
Torque	59.3 ft.lb (Rated), 240% (Locked Rotor), 290% (Breakdown)
Current	50.0/25.0 A (Rated), 315/158 A (Locked Rotor)
Mounting	Foot-mounted (F-1)
Frame	254/6TC, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6309 Z C3 (DE), 6208 Z C3 (NDE)
Rotation	CW and CCW
Overload	Without overload protector
Grease	Mobil Polyrex EM
Noise Level	64.0 dB(A)
Service Factor	1.15
Sealing	Without Bearing Seal
Flange	C
