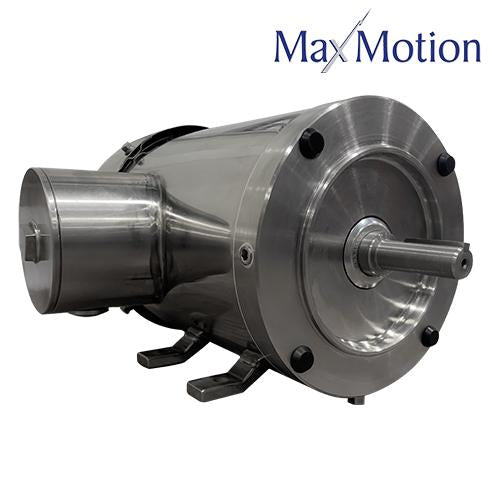

MPSP-704TL, Maxmotion, 7.5 Hp, 1800 Rpm, 575V,Fr:213TC,Stainless Steel

MPSP-704TL, Maxmotion, Stainless Steel motors, Replace MPSP-704T

• 7.5 Hp
• 1760 Rpm
• 575 Volts
• 50/60 Hz
• Frame: 213TC
• Enclosure TEFC
• Stainless Steel motors
• IP66 Rating
• Premium Efficiency

• 10:1 CT ~ 20:1 VT

Premium Efficiency

• Inverter Duty Magnet Wire

• Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque

• Meets or exceeds MG1 Part 31.4.4.2

• Meets or exceeds MEPS (Minimum Efficiency Performance Standards) as described by US Department of Energy in docket 10CFR431 and Natural Resources Canada’s Amendment 14

• NEMA Design B Torque characteristics

• Class F Insulation, with B Temperature Rise

• At 60Hz : 208-230/460v Dual Rated & Plated for 50Hz : 190/380v

• IP66 Inversion Protection

• Round Terminal Box with encapsulated lead wires

• VPI with additional dip and Bake

• Viton Seal installed on both shaft ends with stainless steel shaft slinger

• Four condensation plugs on each end shield for mounting flexibility

• Bonded Stainless Steel Washers

• 304 Grade Stainless Steel Construction

• 1.15 Service Factor

• Rigid base

• CSAus & CE Certified

• Three Year Warranty
