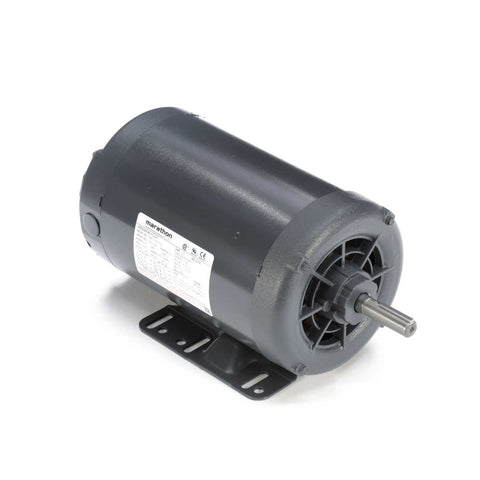

K061A, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, EXK061A

MARATHON

$532.23

K061A, Marathon, EXK061A, CAT 056T17D5369, 056T17D15943

General Specifications

Model :	056T17D15913	Catalog No :	K061A
Part Description :	1 1/2,1725,DP,56H,3/60/575	Category :	Open Drip Proof (ODP)
Stock :	Yes

Nameplate Specifications

Output HP :	1.50 HP	Output KW :	1.1 kW
Frequency :	60 Hz	Voltage :	575 V
Current :	1.9 A	Speed :	1725 RPM
Service Factor :	1.15	Phase :	3
Efficiency :	86.5 %	Duty :	Continous
Insulation Class :	B	Design Code :	B
KVA Code :	M	Frame :	56H
Enclosure :	Drip Proof	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	Y
IP Code :	22

Technical Specifications

Electrical Type :	Squirrel Cage Induction Run	Starting Method :	Across The Line
Poles :	4	Rotation :	Reversible
Mounting :	Rigid base	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	T
Overall Length :	14.07 in	Frame Length :	8.25 in
Shaft Diameter :	0.625 in	Shaft Extension :	2.25 in
Assembly/Box Mounting :	F1 Out ODE Brkt Radial	UPC :	722856117618
Weight :	44.00 LB
