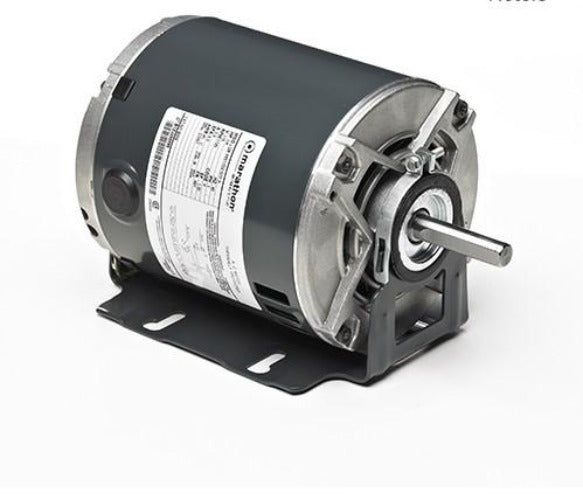

H175, Marathon, 1/2-1/6 Hp,1725/1140 Rpm,115V,Fr 56, 5KH49PN3026,ODP.

MARATHON

$576.15

H175, Marathon, Model 5KH49PN3026, Replace Us Motors Model 5794C, S063JCK7449724B,

Nameplate Specifications

Output HP:	1/2-1/6 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	8.0,4.2 A	Speed:	1725/1140 rpm
Service Factor:	1.25	Phase:	1
Efficiency:	64 %	Power Factor:	0
Duty:	Continuous	Insulation Class:	B
KVA Code:	M	Frame:	56
Enclosure:	Drip Proof	Thermal Protection:	N/R
Ambient Temperature:	40 °C	Drive End Bearing Size:	6203
Opp Drive End Bearing Size:	6203	UL:	Recognized
CSA:	Yes	CE:	N
Number of Speeds:	2

Technical Specifications

Electrical Type:	Split Phase	Starting Method:	SM
Poles:	4	Rotation:	Counterclockwise/Clockwise
Mounting:	Resilient Base	Motor Orientation:	ANY
Drive End Bearing:	BALL	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Overall Length:	11.48 in
Frame Length:	7.15 in	Shaft Diameter:	0.630 in
Shaft Extension:	1.88 in	Thru-bolts Extension:	0 in

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
