C660V1, Century, Emerson 3567, K3567, Ao Smith, C660, Century 193911, 177435, Grainger 4MA43, Trane MOT-6069,

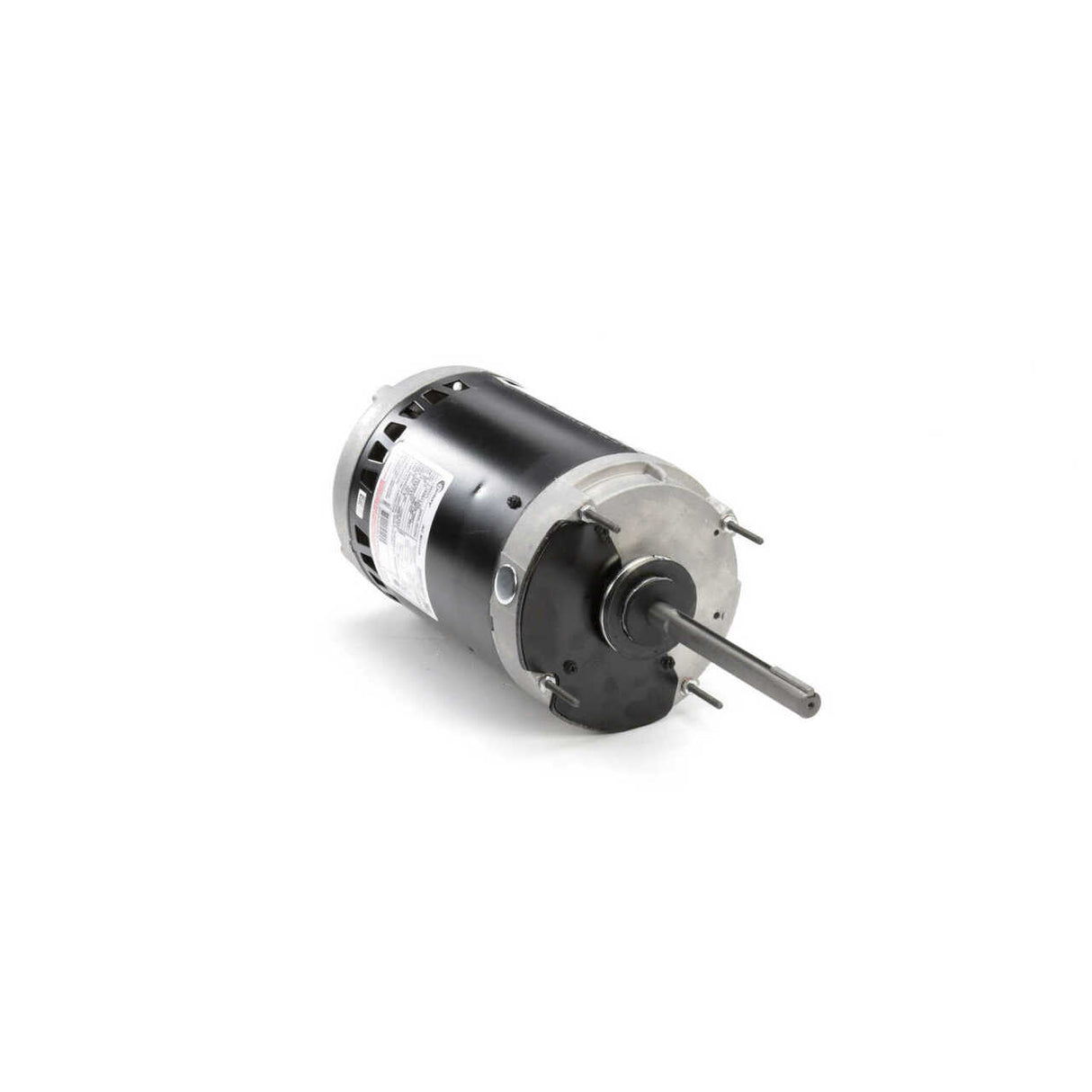

C660V1, Century, 3/4 Hp, 825 Rpm, 460/200-230V,Fr:56Y, Condenser,OPAO,

E-Motor Nations

$845.88

C660V1, Century, Emerson 3567, K3567, Ao Smith, C660, Century 193911, 177435, Grainger 4MA43, Trane MOT-6069,

Nameplate Specifications

Output HP:	3/4 Hp	Output KW:	0.56 kW
Frequency:	60 Hz	Voltage:	460/200-230 V
Current:	2.6/5.3-5.2 A	Speed:	825 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous	Insulation Class:	B
Frame:	N56Y	Enclosure:	Open Air Over
Thermal Protection:	Thermally Protected	Ambient Temperature:	60 °C
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	1

Technical Specifications

Electrical Type:	Permanent Split Capacitor, Single Or Dual Voltage	Starting Method:	Across The Line
Poles:	8	Rotation:	Reversible Clockwise
Mounting:	Resilient Base	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Keyed	Overall Length:	17.31 in
Frame Length:	7.25 in	Shaft Diameter:	0.625 in
Shaft Extension:	6.00 in

KEY FEATURES

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
