MVL30, Maska, Adjustable Pulleys, O.D 2.87'', 1VL30, BROWNING, MULTI BORE I.D

BROWNING

$35.96

MVL30, MASKA, 1VL30 BROWNING,

SPECIFICATIONS

BORE RANGE [MIN]	N/A
FACE WIDTH [MAX]	25/32 in
TYPE	VL
SIDE MOVEABLE	One
FACE WIDTH [MIN]	17/32 in
OVERALL LENGTH	1 1/2 in
3L PITCH [MIN]	2.1 in
BORE RANGE [MAX]	N/A
BELT MATCH	1
K (IN)	0.578 in
KEYWAY SIZE	No Keyway
SERIES	1VL30
G [MAX]	5/8 in

G [MIN]	3/8 in
BUSHING TYPE	None
NO. OF GROOVES	1
PITCH DIAMETER [MIN]	1.6 in
3L PITCH [MAX]	2.4 in
FINISHED BORE	1/2 in

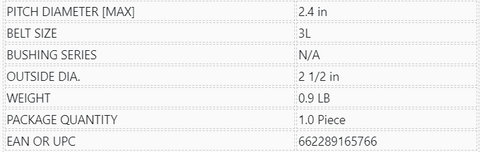

PITCH DIAMETER [MAX]	2.4 in
BELT SIZE	3L
BUSHING SERIES	N/A
OUTSIDE DIA.	2 1/2 in
WEIGHT	0.9 LB
PACKAGE QUANTITY	1.0 Piece
EAN OR UPC
