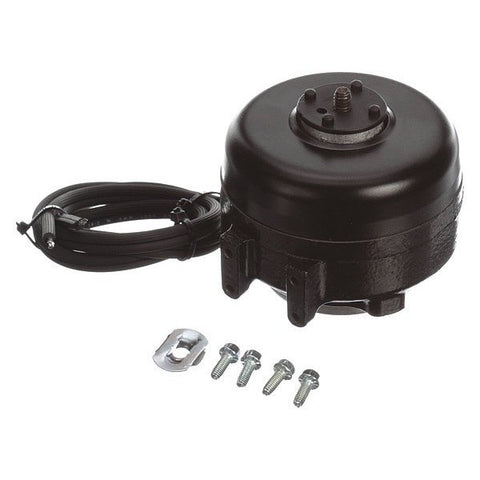

UB591, Fasco, 4W,1450 Rpm,230V,CWSE, TEAO,1Ph, 1/4X20 Threaded shaft,

E-Motor Nations

$61.59

UB591,Fasco,Replace UB04CCH,

Nameplate Specifications

Output Watts:	4 W	Frequency:	60 Hz
Voltage:	230 V	Current:	0.14 A
Speed:	1450 rpm	Service Factor:	1
Phase:	1	Duty:	Continuous
Insulation Class:	B	Frame:	UNIT BEARING
Enclosure:	Totally Enclosed Air Over	Thermal Protection:	Impedance
Ambient Temperature:	40 °C	UL:	Recognized
CSA:	Y	CE:	N
Number of Speeds:	1

Technical Specifications

Electrical Type:	Shaded Pole	Starting Method:	Across The Line
Poles:	4	Rotation:	Counterclockwise Opposite Shaft End
Mounting:	2 BOSS/OSE 3 HOLES	Drive End Bearing:	Unit
Opp Drive End Bearing:	Unit	Frame Material:	Cast Iron
Shaft Type:	Threaded	Frame Length:	2.87 in
Shaft Diameter:	1/4x20 in	Shaft Extension:	.415 in

KEY FEATURES

Refrigeration Motor
Unit Bearing
Shaded Pole
Impedance Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Bearing - Unit
1/4 x 20 Threaded Shaft
28" Leads with .05" Strip
2 Mounting Feet, 3 Rear Mounting Holes
