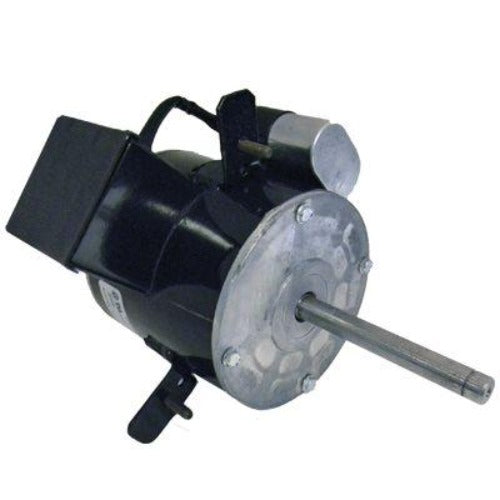

SS1617, Omnidrive, 1/4-1/8Hp, 115V, EC-FC-1617, 3FGM0145-70-6-2V/1

SS1617, Omnidrive, Replace EC-FC-1617, 3FGM0145-70-6-2V/1,3FGM 145-70-6-2V/1, 40101617,

• Horsepower :1/4-1/8
• Voltage :115
• Amps :2.52/1.22
• RPM :1090
• Frequency :60 Hz
• Length :5-5/8"
• "C" Dim. :9-1/8"
• Enclosure :Totally Enclosed
• Shaft Dim. :1/2" x 3-1/2"
• Type :Permanent Split Capacitor
• Speeds :1
• Diameter :5-5/8"
• Frame :48
• Bearings :Ball
• Rotation :CWSE
• Protector :Automatic
• Service Factor :1.00
• Phase :1
• Ambient Temp. :40°C
• Capacitor Rating :10MFD-370VAC
• Feature(s) :No-Base, Class 'B' Insulation, 3 Lugs Included
• Weight (lbs.) :15.4
