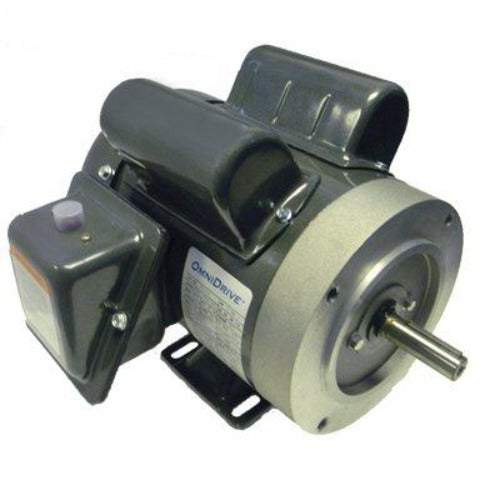

FD138C, Omnidrive, 5 Hp, 3480 Rpm, 208-230v, 1 PH, Frame: 56HC, Tefc.

Name: FD138C, Omnidrive, 5 Hp, 3480 Rpm, 208-230v, 1 PH, Frame: 56HC, Tefc.
Brand: OMNIDRIVE
SKU: EMN-016776
Price: 896.12 CAD
Availability: InStock
Rating: 5 (1 reviews)

OMNIDRIVE

$896.12

FD138C, Omnidrive, 5 Hp, 3480 Rpm, 208-230v, 1 Phase,

Pressure washers motor, Replace OR138C, Leeson 116709.00, D56HC5S2A,

Nameplate Specifications

Output HP:	5 Hp	Output KW:	3.7 kW
Frequency:	60 Hz	Voltage:	230 V
Current:	21.6 A	Speed:	3450 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	82.5 %	Power Factor:	95
Duty:	Continuous	Insulation Class:	F
Design Code:	L	KVA Code:	E
Frame:	56HC	Enclosure:	Drip Proof
Thermal Protection:	Manual	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	22
