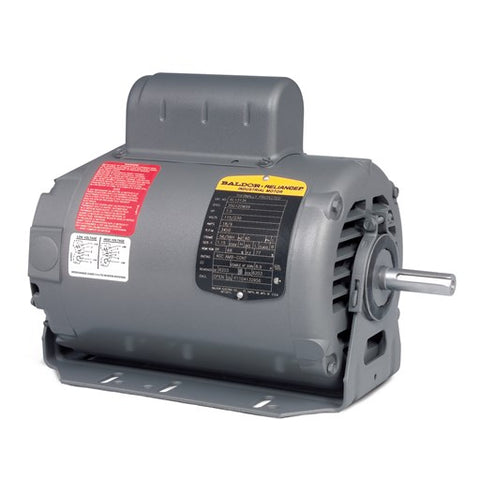

RL1203A, 34K014-5603G5, Baldor, 1/4Hp, 1800 Rpm, 115/230V, Fr: 48,ODP,

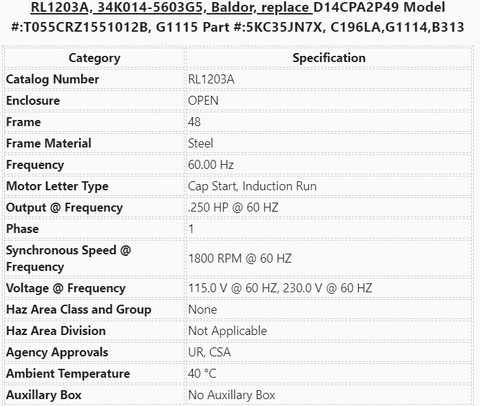

RL1203A, 34K014-5603G5, Baldor, replace D14CPA2P49 Model #:T055CRZ1551012B, G1115 Part #:5KC35JN7X, C196LA,G1114,B313
Category | Specification |
---|---|
Catalog Number | RL1203A |
Enclosure | OPEN |
Frame | 48 |
Frame Material | Steel |
Frequency | 60.00 Hz |
Motor Letter Type | Cap Start, Induction Run |
Output @ Frequency | .250 HP @ 60 HZ |
Phase | 1 |
Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
Voltage @ Frequency | 115.0 V @ 60 HZ, 230.0 V @ 60 HZ |
Haz Area Class and Group | None |
Haz Area Division | Not Applicable |
Agency Approvals | UR, CSA |
Ambient Temperature | 40 °C |
Auxillary Box | No Auxillary Box |

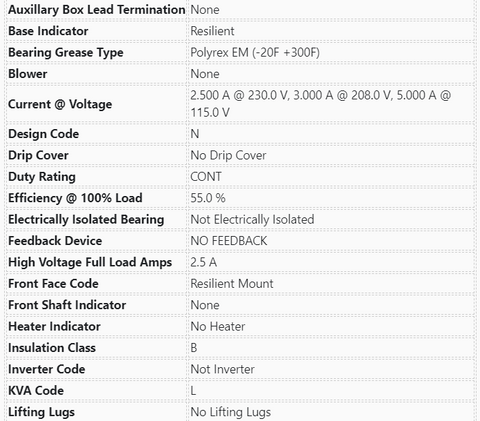

Auxillary Box Lead Termination | None |
Base Indicator | Resilient |
Bearing Grease Type | Polyrex EM (-20F +300F) |
Blower | None |
Current @ Voltage | 2.500 A @ 230.0 V, 3.000 A @ 208.0 V, 5.000 A @ 115.0 V |
Design Code | N |
Drip Cover | No Drip Cover |
Duty Rating | CONT |
Efficiency @ 100% Load | 55.0 % |
Electrically Isolated Bearing | Not Electrically Isolated |
Feedback Device | NO FEEDBACK |
High Voltage Full Load Amps | 2.5 A |
Front Face Code | Resilient Mount |
Front Shaft Indicator | None |
Heater Indicator | No Heater |
Insulation Class | B |
Inverter Code | Not Inverter |
KVA Code | L |
Lifting Lugs | No Lifting Lugs |

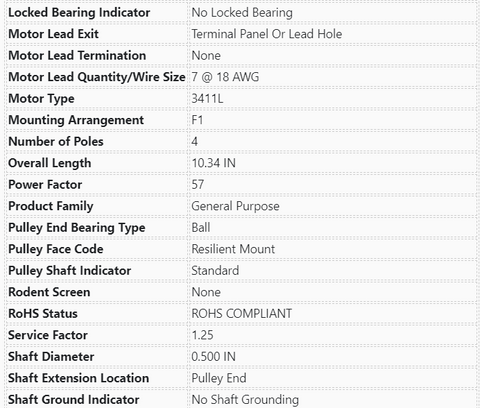

Locked Bearing Indicator | No Locked Bearing |
Motor Lead Exit | Terminal Panel Or Lead Hole |
Motor Lead Termination | None |
Motor Lead Quantity/Wire Size | 7 @ 18 AWG |
Motor Type | 3411L |
Mounting Arrangement | F1 |
Number of Poles | 4 |
Overall Length | 10.34 IN |
Power Factor | 57 |
Product Family | General Purpose |
Pulley End Bearing Type | Ball |
Pulley Face Code | Resilient Mount |
Pulley Shaft Indicator | Standard |
Rodent Screen | None |
RoHS Status | ROHS COMPLIANT |
Service Factor | 1.25 |
Shaft Diameter | 0.500 IN |
Shaft Extension Location | Pulley End |
Shaft Ground Indicator | No Shaft Grounding |
Shaft Rotation | Reversible: Connected Standard |
Shaft Slinger Indicator | No Slinger |
Speed | 1725 rpm |
Speed Code | Single Speed |
Motor Standards | NEMA |
Starting Method | Direct on line |
Thermal Device - Bearing | None |
Thermal Device - Winding | None |
Vibration Sensor Indicator | No Vibration Sensor |
Winding Thermal 1 | Automatic Thermal Overload |
Winding Thermal 1 Location | SB |
Winding Thermal 2 | None |
