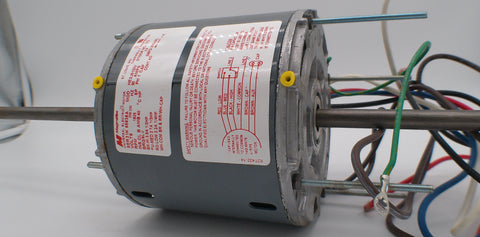

173, HE2J012N, Magnetek, 1/2Hp, 1625 Rpm, 208-230 Volts, Semi Enclosed,

E-Motor Nations

$259.95

173, HE2J012N, Magnetek, RA1054, NA1054,K055RLD2210011B,

Nameplate Specifications

Phase:	1	Output HP:	1/2 Hp
Output KW:	0.37 kW	Voltage:	208-230 V
Speed:	1075 rpm	Service Factor:	1
Frame:	48Y	Enclosure:	Semi Enclosed
Thermal Protection:	Automatic	Ambient Temperature:	60 °C
Frequency:	60 Hz	Current:	2.7 A
Duty:	Air Over	Insulation Class:	B
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	3

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Counterclockwise Lead End
Mounting:	Resilient Ring/Extended Studs	Motor Orientation:	Horizontal
Drive End Bearing:	Sleeve	Opp Drive End Bearing:	Sleeve
Frame Material:	Rolled Steel	Shaft Type:	Flat
Overall Length:	20.00 in	Frame Length:	4.50 in
Shaft Diameter:	0.500 in	Shaft Extension:	7.6X.5X7.3 in

General Specifications

UPC:		Weight:	18.00 LB
Packaged Length:	23.62 IN	Packaged Width:	6.46 IN
Packaged Height:	6.81 IN	HTC:	8501.40.4040
Country of Origin:	India
