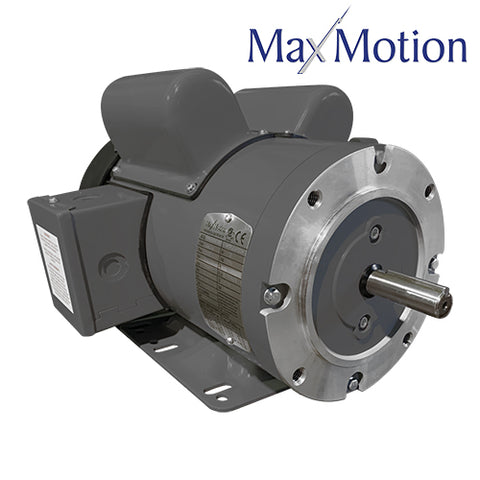

MTR-104FDCH, MaxMotion, 1 Hp, 1800 RPM, 115/208-230V, FR: 56C, TEFC

MTR-104FDCH, REPLACE MTR-104FDC, F134 MARATHON, F104, FD164C, OMNIDRIVE

• 1 HP
• 1800 RPM,
• 115/208-230V
• FRAME: 56C
• ENCLOSURE TEFC
• BALL BEARING

Farm Duty Single Phase & General Purpose Application

• Agency Listings and Standard - NEMA, CSAus and CSA Certified, RoHS Compliant
• Service Factor - 1.15
• Electrical Supply - 115/208-230VAC, 60Hz •
• Mounting - Universal mounting by feet or C flange.
• • Windings - VPI with additional dip and bake, with numbered and color coded wire leads.
• • Insulation - Class F insulation with B temperature rise.
• • Protection - Manually resettable thermal overload.
• • Voltage and Frequency Variation - ±10% Bearings - Permanently Lubricated High quality Double Shielded Ball Bearings with oversized DE bearings. Lithium based grease operating temperature range - 25° trough 175°C. Earthing
•  Terminals - Grounding screw in conduit box
• Earthing Terminals - Grounding screw in conduit box
• Enclosure Protection - IP55
•  Conduit Box - Rotatable 180°, with ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.
•  Nameplate - Stainless Steel with etched details.
• Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.
• Features: •
• Design - L, suitable for ambient temperature of 40°C, altitude 1000M
• • Warranty - 1 year
