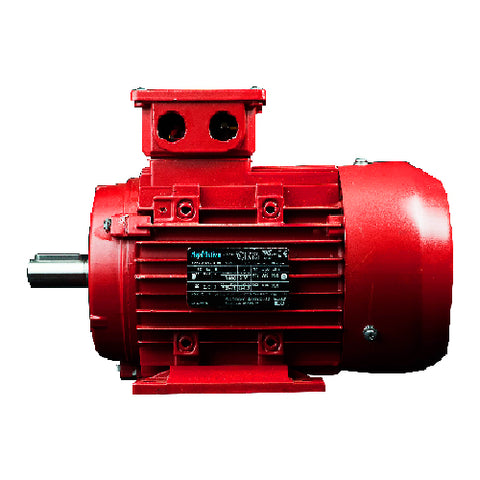

IJA112M2-2-59, 7.5 HP, 3600 RPM, 575V, FRAME 112L, TEFC, MAXMOTION

MAXMOTION

$1,451.19

METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, and IE3 EFFICIENCIES

IJA112M2-2-59

FEATURES:

IP55 weather protection
Class H Insulation, with B Temp Rise
Inverter Duty Magnet Wire,

meets MG1 Part 31 10:1 CT, 20:1 VT
SKF High Temp bearings
56-112 Frames come with

Seal/lubricated Bearings,
132 and larger are re-greasable
Aluminum Construction 56-160 frame, Cast Iron 180-500 frame
Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger
PTC installed on frames 132 and larger
IEC Design N, with NEMA B Torques

Terminal Blocks, Stud

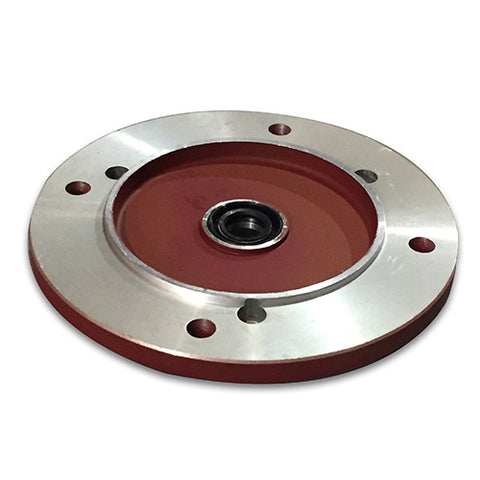

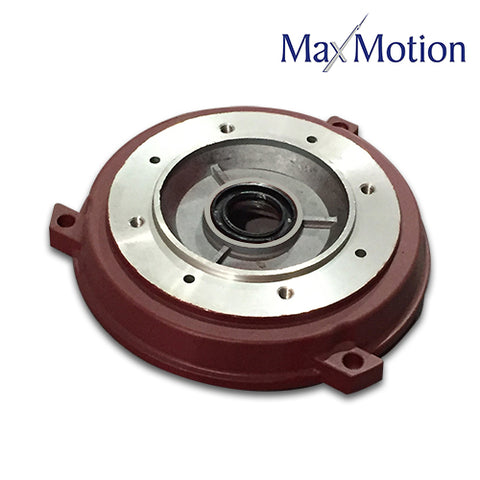

B14 and B5 Flanges are available
MAX MOTION ELECTRIC MOTOR

HP	7.5
CAT. #	IJA112M2-2-59
RPM	3600
VOLTAGE	575
FRAME	112
TORQUE (IN.LBS.)
WGT. LBS.	107.7756
“L” DIM.	395
KW	5.5

IJA
