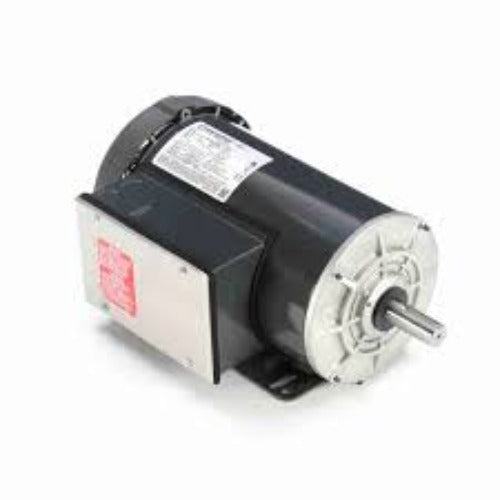

Z128, Marathon, 2 Hp, 1740 Rpm, 115-208/230V,Fr:145T, 145TBFR5341,TEFC

MARATHON

$753.81

Z128, Marathon, PART 145TBFR5341

2 Hp	Output KW:	1.5 kW
Frequency:	60 Hz	Voltage:	115/230 V
Current:	18.8/9.4 A	Speed:	1740 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	81.5 %	Power Factor:	86.1
Duty:	Continuous	Insulation Class:	B
Design Code:	L	KVA Code:	J
Frame:	145T	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	Manual	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6203

Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
