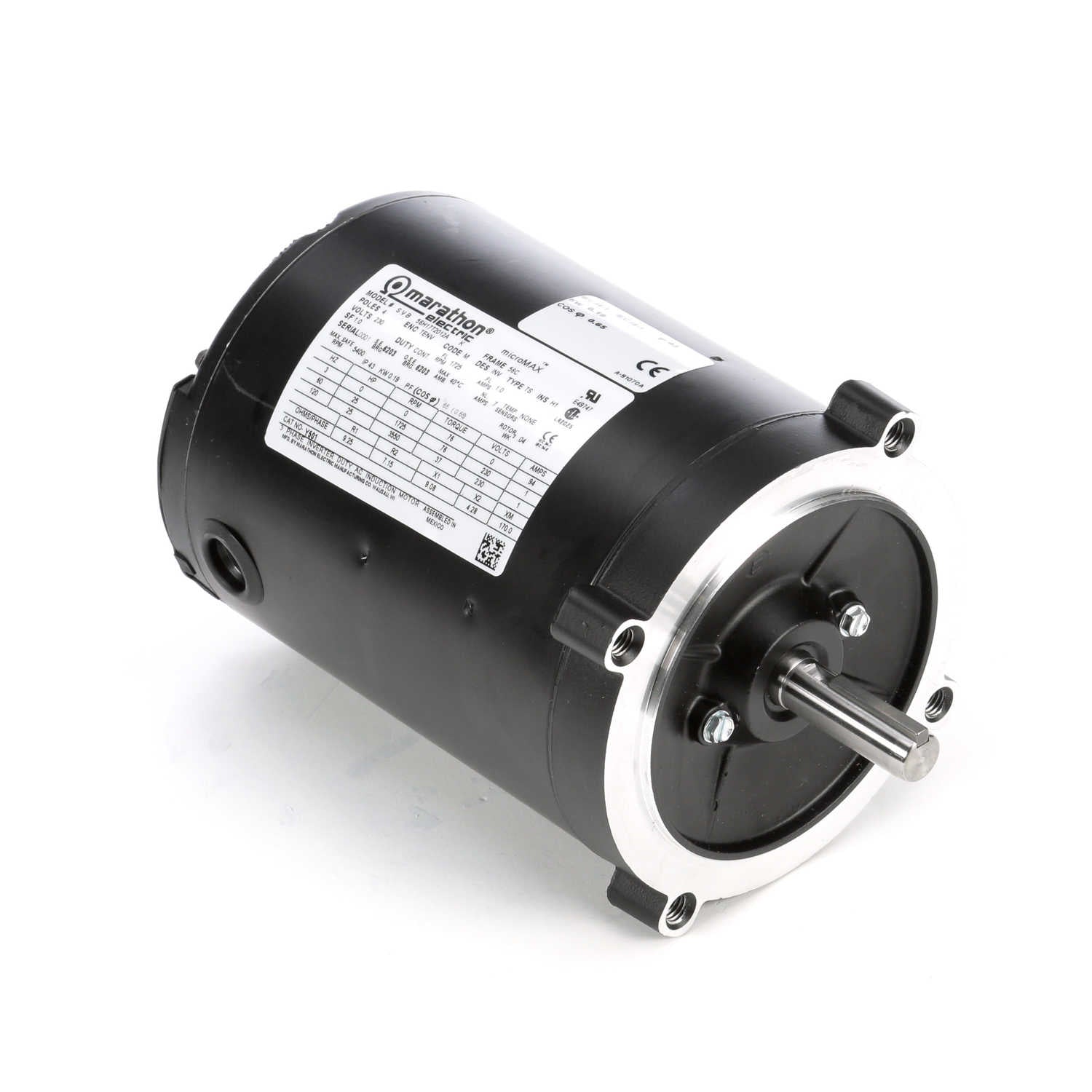

Y505, Marathon, 1/2 Hp, 1750 Rpm, 230V, 056H17T2016, TENV, 56C, MICROMAX

Y505, Marathon, 056H17T2016, MICROMAX

• 1/2 Hp
• 1750 Rpm
• 230 Volts
• Phases 3
• Vfd required for lower speed full torque
• Frame: 56C
• Enclosure TENV
• VFD Rating 1000:1
• INVERTER (VECTOR) DUTY: MICROMAX® MOTORS
• 1000:1 CONSTANT TORQUE (TENV),
• 20:1 CONSTANT TORQUE (TEFC)
• TOTALLY ENCLOSED, THREE PHASE MOTORS

APPLICATIONS: Designed for direct replacement of PMDC or any other variable speed application where up to a 1000:1 constant torque speed range is required. Typical uses include: machine tools, conveyors, packaging machines, batching machines, and printing equipment.

• FEATURES: • Designed to replace PMDC motors (when used with a VFD)

• Constant horsepower to twice base speed (RPM)

• Class H insulation with CR200 corona resistant magnet wire

• Removable base for C-Face footless mounting, as noted

• Continuous duty at 40ºC ambient

• “Quick Connect” terminal board, as noted

• Top mounted conduit box as found on PMDC motors

• Eliminates brush and commutator maintenance

• UL recognized, CSA certified, and CE mark

• Three year warranty

• Model 056H17T2016
