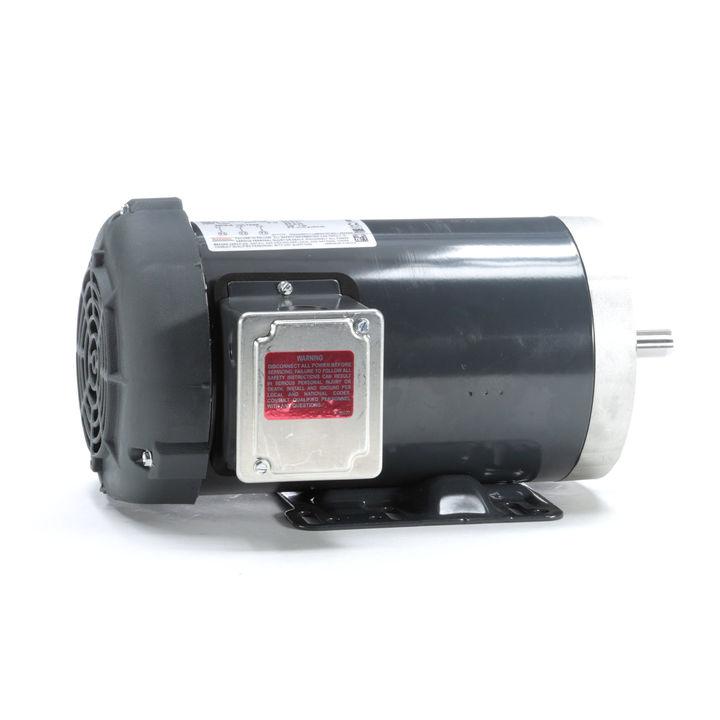

K723A, 056T34F5352, 56T34F99015, MARATHON, 2HP,3600 RPM,MPR-202CW - GÉNÉRAL PURPOSE 3 PHASES - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur

K723A, Marathon, 2hp,3600 rpm,575v, 56hc, 056t34f5352, 56t34f99015, mpr-202cw

MARATHON

$790.10

K723A, 056T34F5352, 56T34F99015, MARATHON, MPR-202CW, MPRP-202CW, MAXMOTION

Nameplate Specifications

Output HP :	2 Hp
Output KW :	1.49 kW
Frequency :	60 Hz
Voltage :	575 V
Current :	2 A
Speed :	3450 rpm
Service Factor :	1.15
Phase :	3
Efficiency :	85.5 %
Duty :	CONTINUOUS
Insulation Class :	F
Design Code :	B
KVA Code :	K
Frame :	56HC
Enclosure :	TEFC
Overload Protector :	NOT
Ambient Temperature :	40 °C
Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203
UL :	Recognized
CSA :	Y
CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	SQ CAGE IND RUN
Starting Method :	ACROSS THE LINE
Poles :	2
Rotation :	REV
Mounting :	BOLT-ON
Motor Orientation :	HORIZONTAL OR UP OR DOWN
Drive End Bearing :	BALL
Opp Drive End Bearing :	BALL
Frame Material :	ROLLED STEEL
Shaft Type :	STANDARD 56
Overall Length :	14.31 in
Frame Length :	9.06 in
Shaft Diameter :	0.63 in
Shaft Extension :	2.06 in
Assembly/Box Mounting :	F1 ONLY
UPC :	722856052049
