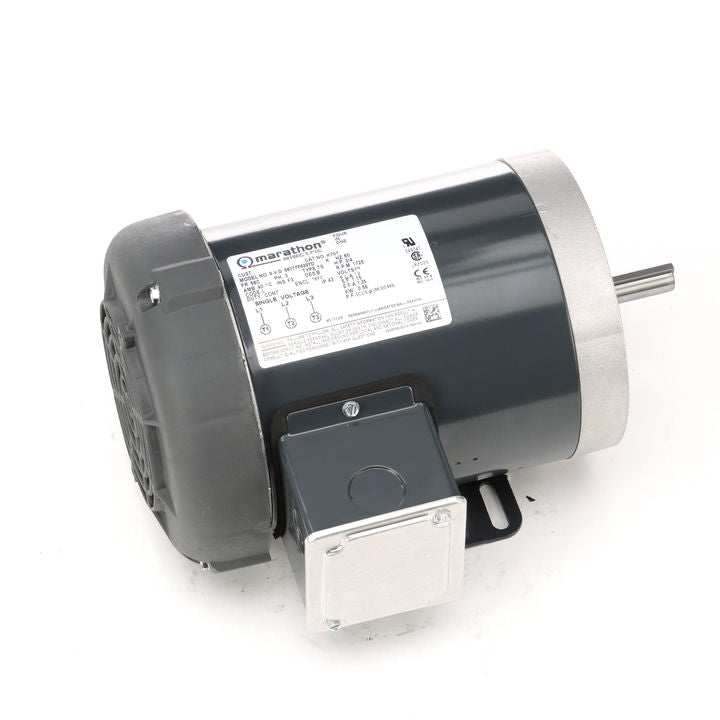

K704, 056T34F5348, 1/2 HP, 3600 RPM, 575V, FR: 56C, MARATHON, MPR-122CW,

MARATHON

$463.44

K704, 056T34F5348,MARATHON, MPR-122CW,

Nameplate Specifications

Output HP :	0.5 Hp
Output KW :	0.37 kW
Frequency :	60 Hz
Voltage :	575 V
Current :	0.9 A
Speed :	3450 rpm
Service Factor :	1.15
Phase :	3
Efficiency :	66 %
Duty :	CONTINUOUS
Insulation Class :	F
Design Code :	B
KVA Code :	P
Frame :	56C
Enclosure :	TEFC
Overload Protector :	NOT
Ambient Temperature :	40 °C
Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203
UL :	Recognized
CSA :	Y
CE :	Y
IP Code :	43
