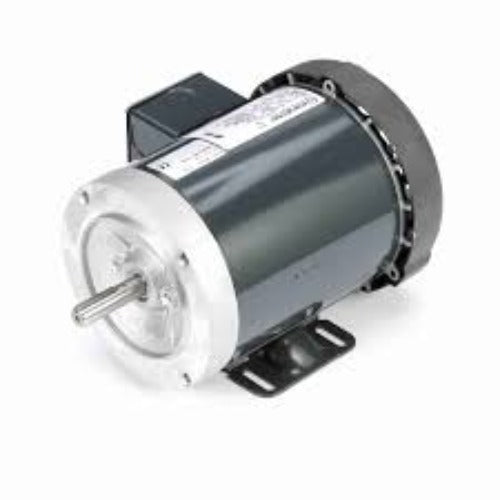

D391, Marathon, 1/2 Hp 3600 RPM, 230/460V, 056T34F5301, 56C, MQR-122CW, TEFC

Name: D391, Marathon, 1/2 Hp 3600 RPM, 230/460V, 056T34F5301, 56C, MQR-122CW, TEFC
Brand: MARATHON
SKU: EMN-006949
Price: 471.47 CAD
Availability: InStock
Rating: 5 (1 reviews)

MARATHON

$471.47

D391, Marathon, model 056T34F5301,

Nameplate Specifications

Output HP:	0.50 Hp	Output KW:	0.37 kW
Frequency:	60/50 Hz	Voltage:	208-230/460 V
Current:	2.0-2.2/1.1 A	Speed:	3450 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	66 %	Power Factor:	69.7
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	P
Frame:	56C	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Squirrel Cage Induction Run	Starting Method:	Across The Line
Poles:	2	Rotation:	Reversible
Resistance Main:	8.34 Ohms	Mounting:	Bolt-on Base
Motor Orientation:	Horizontal Or Up Or Down	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	11.81 in
Frame Length:	6.56 in	Shaft Diameter:	0.625 in
Shaft Extension:	2.06 in	Assembly/Box Mounting:	F1 Only
