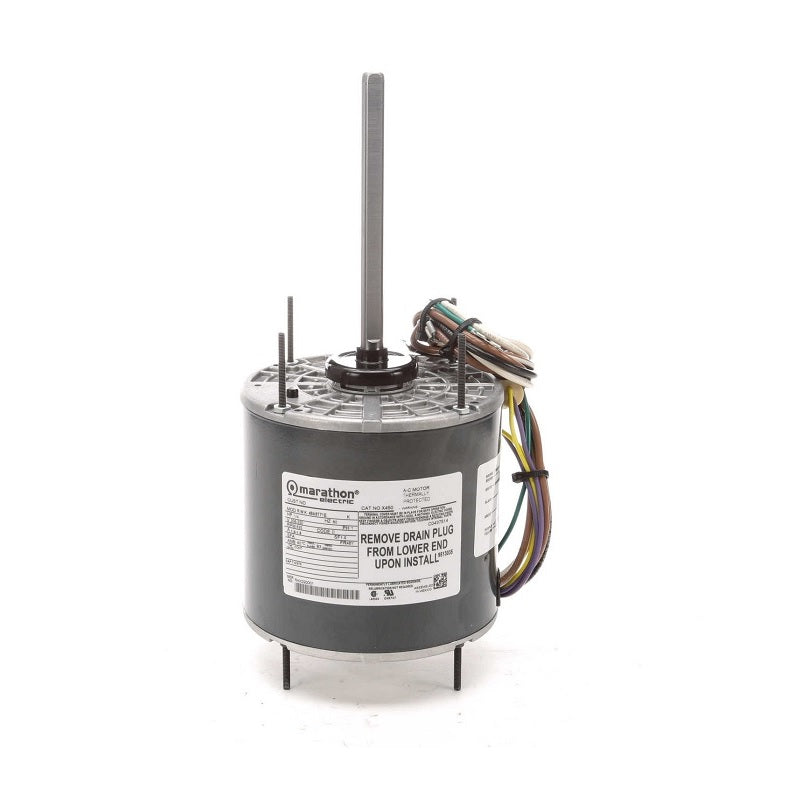

X414,Marathon, 1/2Hp,1075 Rpm,208-230V, 048A11T571,FSE1056,1878,Fr:48,

E-Motor Nations

$350.28

X414,Marathon,048A11T571,Centurym Ao Smith, FSE1056,Us Motors, 1878, K055MAD0215012B, Replace Brand below,

Nameplate Specifications

Phase:	1	Output HP:	0.50 Hp
Output KW:	0.37 kW	Voltage:	208-230 V
Speed:	1075 rpm	Service Factor:	1
Frame:	48Z	Enclosure:	Totally Enclosed Air Over
Thermal Protection:	Automatic	Efficiency:	70 %
Ambient Temperature:	60 °C	Frequency:	60 Hz
Current:	2.8-2.7 A	Power Factor:	91.6
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	43
Number of Speeds:	1

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Round - Extended Studs
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Single Special Extension	Overall Length:	11.50 in
Frame Length:	4.50 in	Shaft Diameter:	0.500 in
Shaft Extension:	6.06 in	Assembly/Box Mounting:	F1 ONLY

General Specifications

UPC:	722856037794	Weight:	17.00 LB
Packaged Length:	16.06 IN	Packaged Width:	6.75 IN
Packaged Height:	6.62 IN	HTC:	8501.40.4040
Country of Origin:	Mexico

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %
Current (Amps)	1.37	1.51	1.75	2.08	2.53	3.11
Rated Output (KW)	0.16	0.25	0.33	0.43	0.53	0.66
Efficiency (%)	50.2	38.2	56.3	65.8	70.0	70.4
Power Factor (%)	91.5	70.5	82.2	88.7	91.6	92.5
Speed (RPM)	1,200	1,183	1,170	1,153	1,132	1,104
Temp. Rise @ FL	0.0	0.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	8.99	18.00	27.40	37.20	47.70

AO SMITH	FSE1056, FSE1056S, FSE1056SVA
CENTURY	FSE1056SV1, EM3730F, EM3730
EMERSON	1862, 2426
US MOTORS	1862PEP
2U MOTORS	YDK140-550-6A
A1	F2792
AMEC	YDK140-375-6D1-2
BEACON C	2CF126X
CARRIER	P257-8730
ECONOMASTER	EM3730
EMBRACO	E223
FASCO	D-907
GEM	EM3730, EM3330
GENERAL ELECTRIC	3086, 3730
GRAINGER/DAYTON	4M107
IRP	160-3
JS	S88-503
MARATHON	48A11T2011, 2011, 48A11T571, 48A11TB571
MARS	10730, 3086, 3730
MW	251835
NORDYNE	912425
PACKARD	63130
PROFIT	V13730
RE MICHEL	2E565
ROTOM	CF-3734, R22187
SMITH	FSE1056SF
TRANE	M0T-6041
UNIVERSAL	U-187
UPG	FHM3730
WAGNER	WG840730
