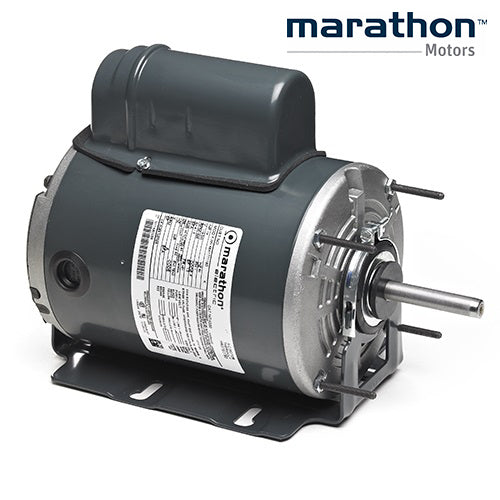

X032,Marathon,1/2Hp,1625 Rpm,115/230V,Fr:48Y, TEAO,048A17T119,1850,

E-Motor Nations

$408.00

X032,Marathon,048A17T119, Us Motors, 1850, K055LKW3772022B,

Nameplate Specifications

Phase:	1	Output HP:	0.50 Hp
Output KW:	0.37 kW	Voltage:	115/230 V
Speed:	1625 rpm	Service Factor:	1
Frame:	48Y	Enclosure:	Totally Enclosed Air Over
Thermal Protection:	Automatic	Efficiency:	72 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	5.4/2.7 A	Power Factor:	93.5
Duty:	Continuous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	B
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	43
Number of Speeds:	1

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Resilient Base - Extended Studs
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Single Special Extension	Overall Length:	11.81 in
Frame Length:	7.25 in	Shaft Diameter:	0.500 in
Shaft Extension:	2.56 in	Assembly/Box Mounting:	F1 ONLY

General Specifications

UPC:	722856028075	Weight:	24.00 LB
Packaged Length:	13.75 IN	Packaged Width:	7.88 IN
Packaged Height:	8.75 IN	HTC:	8501.40.4040
Country of Origin:	Mexico

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Locked-Rotor	7.74	322.0	17.80	69.0	0	1.53	0.0	0.50
Break-Down	5.31	221.0	46.10	179.0	1,264	1.12	0.0	0.50
Pull-Up	7.80	325.0	16.40	64.0	34	1.54	0.0	0.50
Full Load	2.40	100.0	25.70	100.0	1,630	0.52	0.0	0.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %
Current (Amps)	0.75	1.05	1.40	1.80	2.40	2.70	3.04
Rated Output (KW)	0.13	0.21	0.30	0.40	0.52	0.60	0.67
Efficiency (%)	0.0	44.7	62.0	70.0	72.0	70.0	70.3
Power Factor (%)	74.2	86.5	93.2	96.1	93.5	95.0	95.1
Speed (RPM)	1,800	1,755	1,718	1,678	1,630	1,600	1,559
Temp. Rise @ FL	0.0	0.0	0.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	5.99	12.20	18.70	25.70	30.00	33.80

KEY FEATURES

Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
