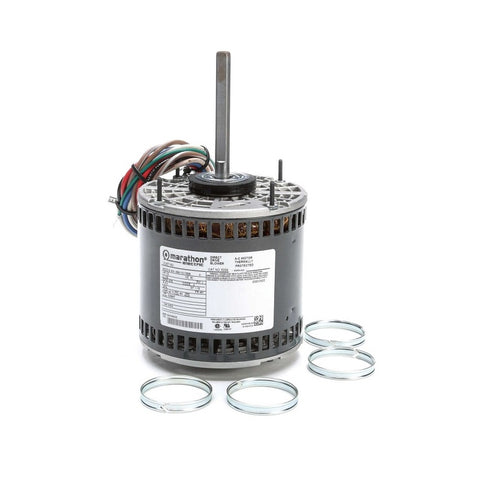

X004,Marathon,1/2Hp,1075 Rpm,115V,048A11O1755,FML1056,X033,048A11O1674

X004, Marathon, 1/2Hp, 1075/3Spd, 115V, Fr:48, 048A11O1755, FML1056, X033, 048A11O1674

E-Motor Nations

$312.80

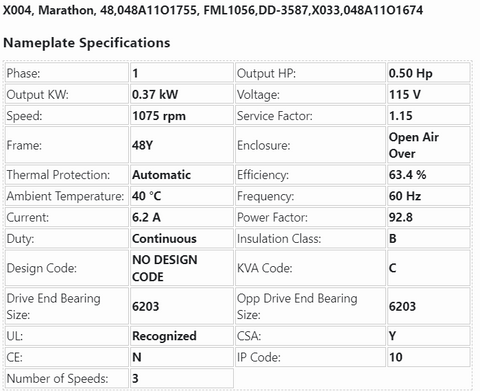

X004, Marathon, 48,048A11O1755, FML1056,DD-3587,X033,048A11O1674

Nameplate Specifications

Phase:	1	Output HP:	0.50 Hp
Output KW:	0.37 kW	Voltage:	115 V
Speed:	1075 rpm	Service Factor:	1.15
Frame:	48Y	Enclosure:	Open Air Over
Thermal Protection:	Automatic	Efficiency:	63.4 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	6.2 A	Power Factor:	92.8
Duty:	Continuous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	10
Number of Speeds:	3

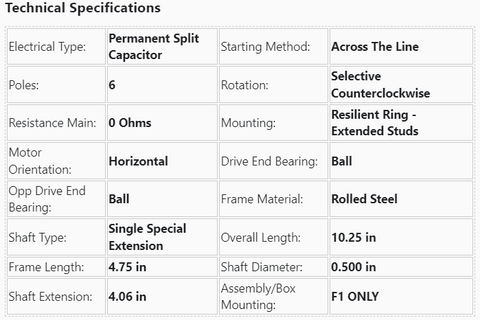

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Resilient Ring - Extended Studs
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Single Special Extension	Overall Length:	10.25 in
Frame Length:	4.75 in	Shaft Diameter:	0.500 in
Shaft Extension:	4.06 in	Assembly/Box Mounting:	F1 ONLY

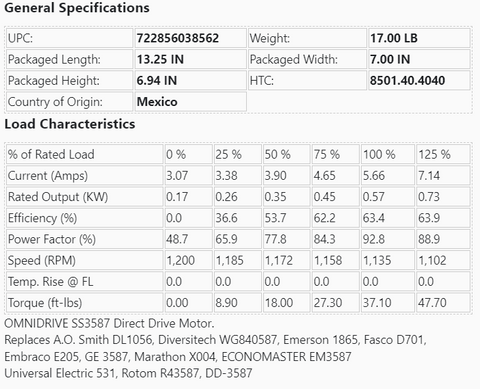

General Specifications

UPC:	722856038562	Weight:	17.00 LB
Packaged Length:	13.25 IN	Packaged Width:	7.00 IN
Packaged Height:	6.94 IN	HTC:	8501.40.4040
Country of Origin:	Mexico

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %
Current (Amps)	3.07	3.38	3.90	4.65	5.66	7.14
Rated Output (KW)	0.17	0.26	0.35	0.45	0.57	0.73
Efficiency (%)	0.0	36.6	53.7	62.2	63.4	63.9
Power Factor (%)	48.7	65.9	77.8	84.3	92.8	88.9
Speed (RPM)	1,200	1,185	1,172	1,158	1,135	1,102
Temp. Rise @ FL	0.0	0.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	8.90	18.00	27.30	37.10	47.70

OMNIDRIVE SS3587 Direct Drive Motor.
Replaces A.O. Smith DL1056, Diversitech WG840587, Emerson 1865, Fasco D701, Embraco E205, GE 3587, Marathon X004, ECONOMASTER EM3587
Universal Electric 531, Rotom R43587, DD-3587
