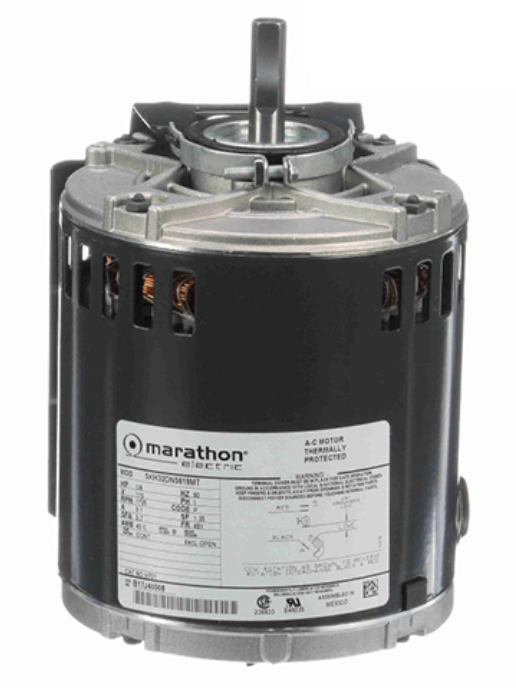

HG703, Marathon, 1/2 Hp, 1725 Rpm, 5KH35MNA519T, 115 V, 7.9A, Fr: 48Y,

E-Motor Nations

$331.34

HG703, Marathon, 5KH35MNA519T

Nameplate Specifications

Output HP:	0.50 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	7.9 A	Speed:	1725 rpm
Service Factor:	1.25	Phase:	1
Efficiency:	65.4 %	Power Factor:	0
Duty:	Continuous	Insulation Class:	B
KVA Code:	N	Frame:	48Y
Enclosure:	Open Enclosed	Thermal Protection:	AUTO
Ambient Temperature:	40 °C	Drive End Bearing Size:	6203
Opp Drive End Bearing Size:	6203	UL:	Recognized
CSA:	Yes	CE:	N
Number of Speeds:	1

KEY FEATURES

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
