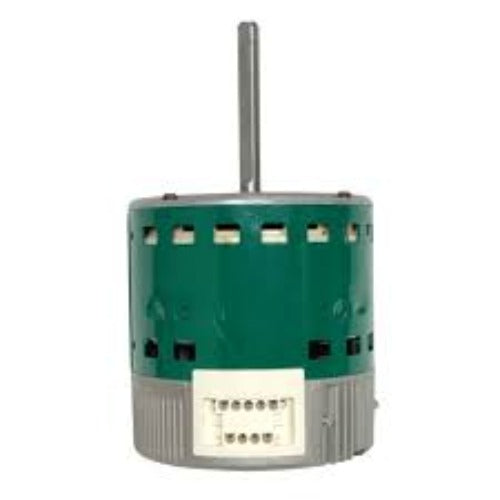

Genteq,6505V,Evergreen,1/2 Hp,1050 Rpm,208/240V,Fr: 48,ECM Motors,OAO,
Genteq,6505V, Evergreen, ECM Motors, Electronically Commutated, Replace Packard 45461, Packard, 43588, Packard, 46012, Nidec Us Motors, 5532ET,Model M055TYL0076015B, M055TZK0097015B, 6633, 5632, M055TZG0094015B,
Nameplate Specifications
Output HP: | 1/2 Hp | Output KW: | 0.37 kW |
Frequency: | 60 Hz | Voltage: | 120/240 V |
Current: | 7.7/4.3 A | Speed: | 1050 rpm |
Service Factor: | 1 | Phase: | 1 |
Duty: | Continuous Air Over | Insulation Class: | B |
Frame: | 48 | Enclosure: | Open Air Over |
Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
UL: | No | CSA: | N |
CE: | N | Number of Speeds: | 1 |
Technical Specifications
Electrical Type: | Electronically Commutated Motor | Poles: | 12 |
Rotation: | Counterclockwise/Clockwise | Mounting: | Round |
Motor Orientation: | Vsd | Drive End Bearing: | Ball |
Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
Shaft Type: | Flat | Overall Length: | 11.21 in |
Frame Length: | 4.07 in | Shaft Diameter: | 0.500 in |
Shaft Extension: | 5.00 in | Thru-bolts Extension: | 0 in |
Technical Specifications
Electrical Type: | Electronically Commutated Motor | Poles: | 12 |
Rotation: | Counterclockwise/Clockwise | Mounting: | Round |
Motor Orientation: | Vsd | Drive End Bearing: | Ball |
Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
Shaft Type: | Flat | Overall Length: | 11.21 in |
Frame Length: | 4.07 in | Shaft Diameter: | 0.500 in |
Shaft Extension: | 5.00 in | Thru-bolts Extension: | 0 in |
- Evergreen VS - ECM Variable Speed Replacement Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 45°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- ***Application May Require User Interface Catalog Number 5K010 or 5K010V. For Additional Information Refer to “Evergreen® VS Motors” Product Page, or Search “Motor Cross Reference” in “Tools & Resources” for OEM Replacement Cross.
- MOUNTING Belly Band
