FDL1054, CENTURY, 1694, US MOTORS, EM-1694, FDL1054 AO SMITH, FASCO D785, REPLACE GE 5KCP39KG979N S, CPN 31676 ( GE ADD BRACKET MOUNTING FLEX 55)

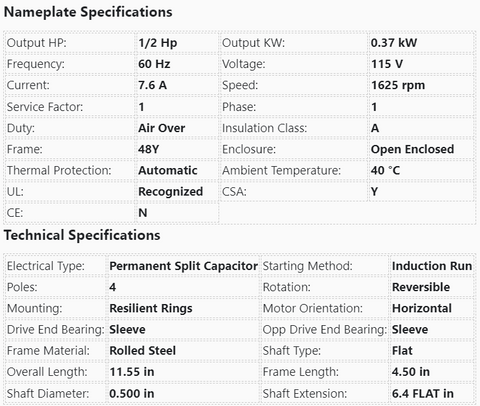

Nameplate Specifications
Output HP: |
1/2 Hp |
Output KW: |
0.37 kW |
Frequency: |
60 Hz |
Voltage: |
115 V |
Current: |
7.6 A |
Speed: |
1625 rpm |
Service Factor: |
1 |
Phase: |
1 |
Duty: |
Air Over |
Insulation Class: |
A |
Frame: |
48Y |
Enclosure: |
Open Enclosed |
Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
UL: |
Recognized |
CSA: |
Y |
CE: |
N |
Technical Specifications
Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Induction Run |
Poles: |
4 |
Rotation: |
Reversible |
Mounting: |
Resilient Rings |
Motor Orientation: |
Horizontal |
Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
Overall Length: |
11.55 in |
Frame Length: |
4.50 in |
Shaft Diameter: |
0.500 in |
Shaft Extension: |
6.4 FLAT in |
