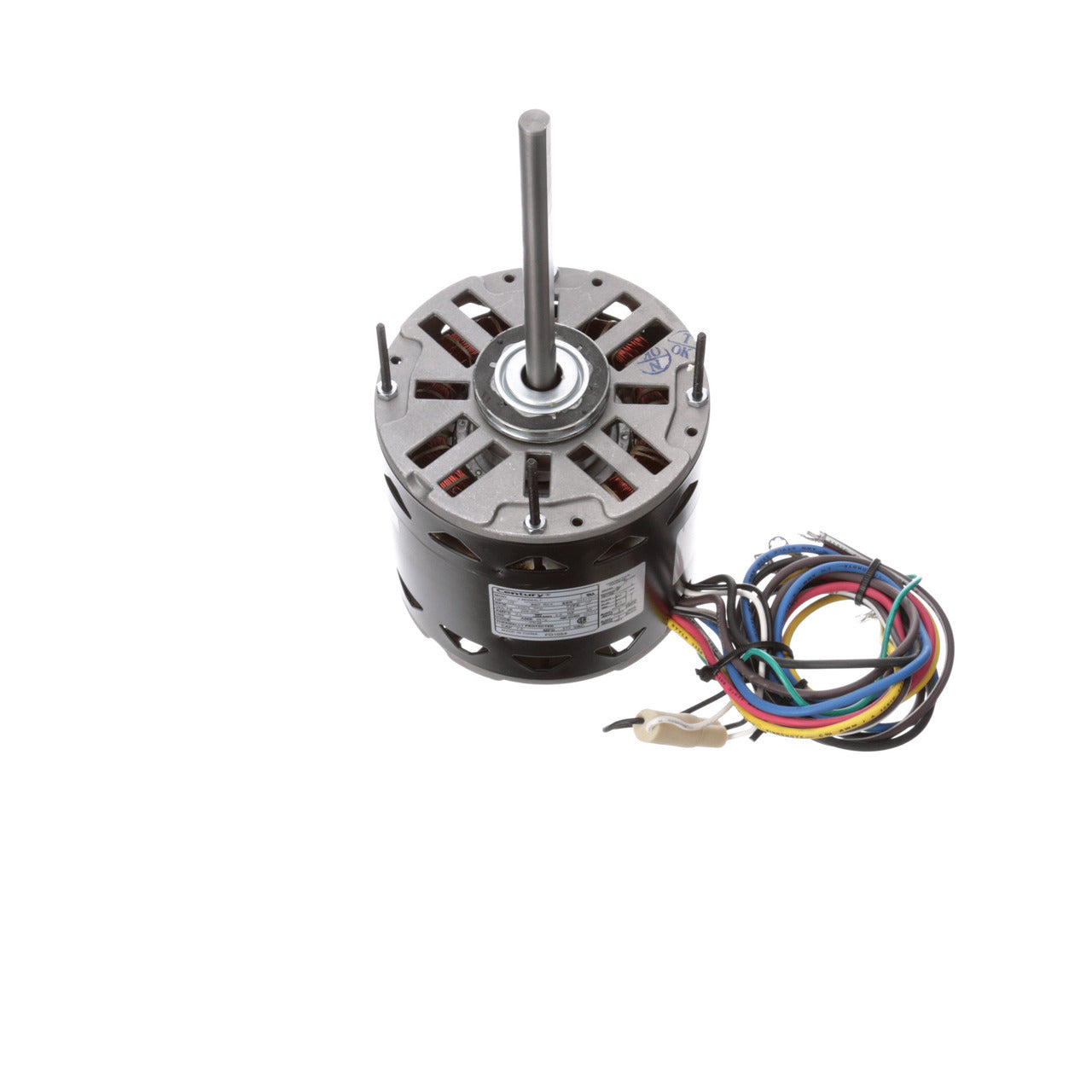

FD1056, Century, 1/2 Hp, 1075/3 Spd, 208-230V, FR: 48Y, F48L12A50, EM3588

CENTURY

$371.90

FD1056, REPLACE F48L12A50, EM3588,

Model :		Catalog No :	FD1056
Part Description :	1/2 HP,1075 RPM,3 SPD,208-230V,48FR,CENTURY MOTOR	Category :	Direct Drive
Stock :	Yes

Nameplate Specifications

Output HP :	1/2 HP	Output KW :	0.37 kW
Frequency :	60 Hz	Voltage :	208-230 V
Current :	2.7 A	Speed :	1075 RPM
Service Factor :	1	Phase :	1
Duty :	Air Over	Insulation Class :	A
Frame :	48Y	Enclosure :	Open Enclosed
Overload Protector :	Automatic	Ambient Temperature :	50 °C
UL :	Recognized	CSA :	Y
CE :	N

Technical Specifications

Electrical Type :	Permanent Split Capacitor	Starting Method :	Induction Run
Poles :	6	Rotation :	Reversible
Mounting :	Resilient Rings	Motor Orientation :	Horizontal
Drive End Bearing :	Sleeve	Opp Drive End Bearing :	Sleeve
Frame Material :	Rolled Steel	Shaft Type :	Flat
Overall Length :	12.30 in	Frame Length :	4.50 in
Shaft Diameter :	0.500 in	Shaft Extension :	6.4 FLAT in
UPC :	786674020505	Weight :	18.00 LB
