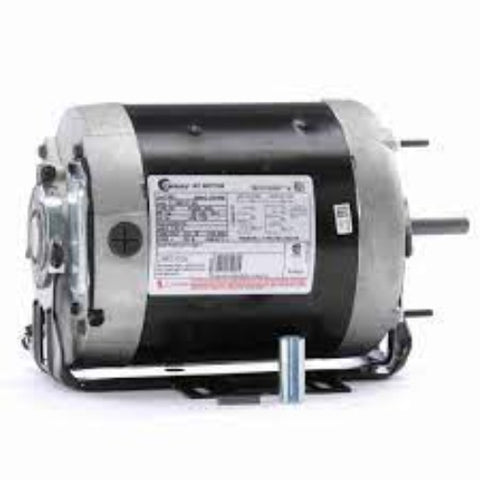

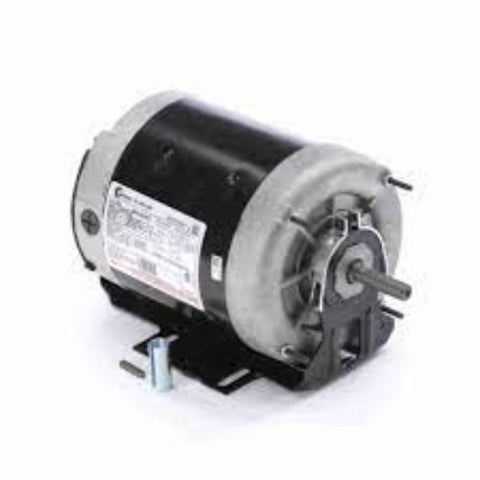

F501. Century, 1/2 Hp, 1800 RPM, 115-208/230V, 056S17T2002, TEAO, 56Z,

CENTURY

$529.41

F501 Century, Replace Marathon X900, Obsolete, 056S17T2002,

Nameplate Specifications

Output HP:	1/2 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	230/115 V
Current:	3.5/7.0 A	Speed:	1725 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous	Insulation Class:	B
Frame:	J56Z	Enclosure:	Totally Enclosed Air Over
Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	1

Technical Specifications

Electrical Type:	Split Phase, Induction Run, Single Or Dual Voltage	Starting Method:	Across The Line
Poles:	4	Rotation:	Reversible Counterclockwise
Mounting:	Cushion Base	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Flat	Overall Length:	11.07 in
Frame Length:	5.13 in	Shaft Diameter:	0.500 in
Shaft Extension:	1.88 in

UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
