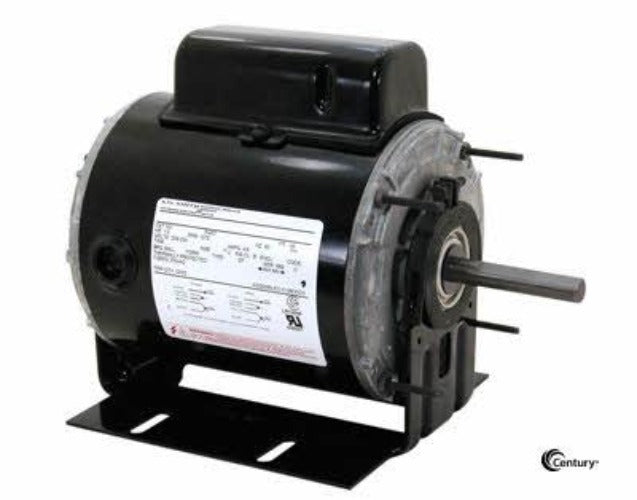

733A, Century, 1/2 HP, 1075 Rpm, 115/230V, FR:48, F48Y59A01,K055SND1195012B

CENTURY

$473.18

CENTURY 733A, 733 AO SMITH, F48Y59A01,

REPLACE 733, F48Y59A01, 152665, C749, D817, HF3L069, HF3L7069, K055SND1195012B

Horsepower :1/2
Voltage :115/208-230
Amps :5.6/2.8
RPM :1140
Frequency :60 Hz
Length :7-1/4"
"C" Dim. :12-9/32"
Enclosure :Totally Enclosed
Shaft Dim. :1/2” x 4-/12”
Type :Permanent Split Capacitor
Speeds :1
Diameter :5-5/8"
Frame :48Y
Bearings :Ball
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :60°C
Capacitor Rating :10MFD-370VAC
Feature(s) :Class 'B' Insulation, Capacitor Mounted, Resilient Base
Weight (lbs.) :19
