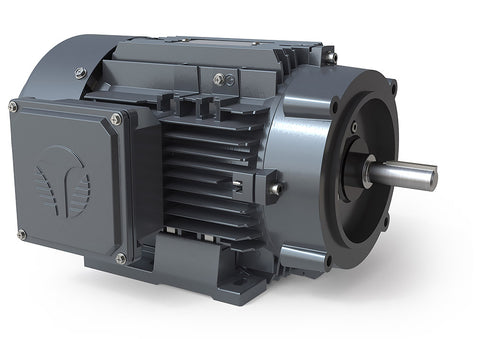

BLA0032DP-C, 3 HP, 3450 Rpm, 230/460V, FR: 56HC, Tefc, Premium, Tech top

TECHTOP

$669.77

BLA0032FP-C, TECHTOP,

3 Hp
34500 Rpm
230/460 Volts
Frame 56HC
Enclosure TEFC
Removable base
Premium Efficency

Motor Features

STANDARD FEATURES

Removable feet F1, F2, F0 field convertible
1.15 Service Factor with 60Hz operation
24 Month warranty
Conduit Box is 90º rotatable
Cast aluminum construction with cast aluminum c-flanges
Class I, Division II, Groups A, B, C and D compliant
Anti-microbial (tropicalization) on stator winding
Compact lightweight design
Dual oversized shielded bearings size 6204ZZ
1045 Steel shaft
Surface finish:
- Alkyd enamel RAL7024 - Graphite Gray
- Black oxide surface treatment for increased corrosion resistance
Stainless steel nameplate
Corrosion resistant hardware

OPERATING PARAMETERS

Continuous (S1) duty
Ambient temperatures up to 40ºC
Installation up to 1000 MASL (3300 ft.)

CONNECTION

9-Lead 230V parallel-wye / 460V series-wye connection
3-Lead 575V wye connection

INGRESS PROTECTION

The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed. DE and NDE end bell fitted with sintered brass one-way drain.

INSULATION AND INVERTER RATING

Class F Insulation
Designed to Class B temperature rise
Vacuum Impregnated
Inverter Rated 4:1 Constant Torque, 10:1 Variable Torque (1.0 S.F. on VFD Power). Meets NEMA MG 1 part 30 standards
