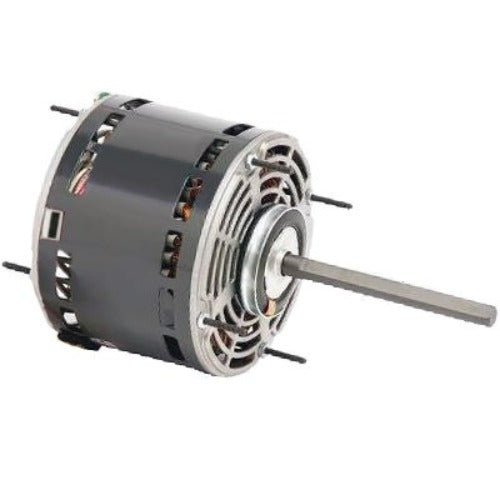

8906, Us Motors, 1 HP, 1075 RPM, 3SPD, 115V, K055TAJ8136012B, Fr:48, HVAC

US MOTORS

$434.87

8906. EM-8906, Us Motors, Model K055TAJ8136012B

Horsepower :1
Voltage :115
Amps :12.30
RPM :1075
Frequency :60 Hz
Length :6-5/8"
"C" Dim. :12-7/32"
Enclosure :Open
Shaft Dim. :1/2” x 5.00"
Type :Permanent Split Capacitor
Speeds :3
Diameter :5-5/8"
Frame :48
Bearings :Ball
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Capacitor Rating :20MFD-370V
Feature(s) :Class 'B' Insulation, Studs Shaft Side Only, 24" Leads, 2.5" Diameter Hub Rings Included, Extended Thru-Bolts, Reversing Plug
Weight (lbs.) :20
