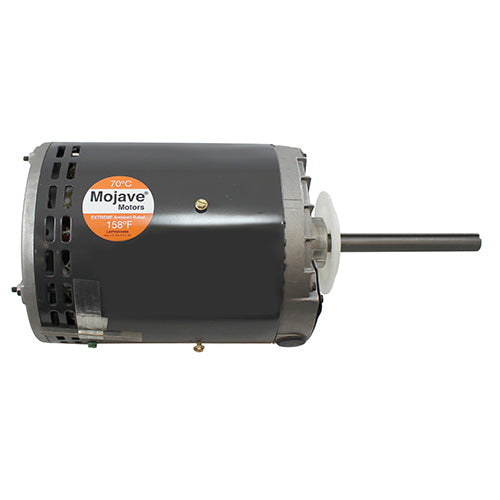

1819H,Us Motors, 1-1/2Hp, 1140 Rpm, 208-230/460V,Fr:56Z,OAO,Condenser,

E-Motor Nations

$789.96

1819H, Us Motors, P063ELR5029015B, Us motors, replaced H767V1, Century,

Specification	Details

Phase Type

3_POLYPHASE

Motor Enclosure

OAO (Open Air Over)

Horsepower

1.5 HP

Kilowatts

1.1 kW

Poles

Number of Speeds

RPM

1140

Hertz

Volts Primary

208-230/460 V

Volts

208 V

Volts 2

230 V

Volts 3

460 V

Frame

Shaft Code

Stator Diameter

6.3 in

Stack

3.47 in

Mounting

Belly Band

Motor Type

FHP

Opposite End Bearing

6203

Shaft End Bearing

6203

Ambient Temperature

70 °C

Rotation

Reversible

Shipping Weight

35 lbs

Thermal Protection

Automatic Reset

Breakdown Torque

356.7 oz-ft

Locked Rotor Torque

235.6 oz-ft

Insulation Class

KVA Code Letter

Locked Rotor Amps

24.4 A

Full Load Amps Primary

5.4/2.7 A
