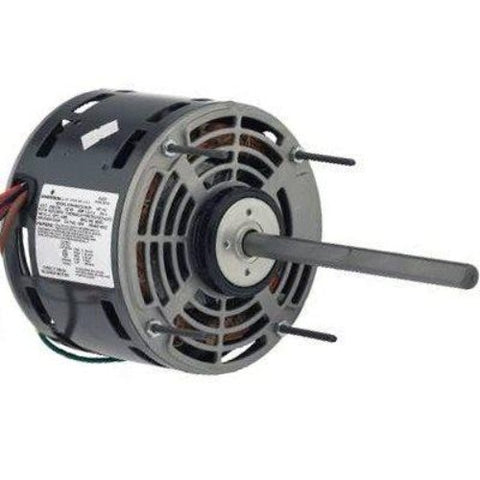

1696, US MOTORS, 3/4 HP, 1625/3SPD, 115V, FR:48, K055KDG9450022B,FDL1074,

Name: 1696, US MOTORS, 3/4 HP, 1625/3SPD, 115V, FR:48, K055KDG9450022B,FDL1074,
Brand: US MOTORS
SKU: EMN-015955
Price: 385.98 CAD
Availability: InStock
Rating: 5 (1 reviews)

US MOTORS

$385.98

1696, EM-1696, FDL1074 AO SMITH, K055KDG9450022B

Horsepower :3/4

Voltage :115

Amps :8.60

RPM :1625

Frequency :60 Hz

Length :5.60"

"C" Dim. :11.70"

Enclosure :Open Air Over

Shaft Dim. :1/2" x 5.00"

Type :Permanent Split Capacitor

Speeds :3

Diameter :5-5/8"

Frame :48Y

Bearings :Self Aligning Bearing

Rotation :Reversible

Protector :Automatic

Service Factor :1.00

Phase :1

Ambient Temp. :40°C

Feature(s) :Class 'B' Insulation, 2.5” Diameter Hub Rings Included, SAB Bearings Have All Angle Thrust System, 24” Leads

Weight (lbs.) :20
